Product Details:
|
| Name: | Chicken Skeleton Duck Skeleton Grinder Mincer Machine | Model: | AJR-130 |
|---|---|---|---|
| Dimension: | 1315x700x1100mm | Weight: | 700kg |
| Power: | 11kw | Voltage: | 380v/50hz |
| Capacity: | 1000-1500kg/h | Rotation Speed: | 190r/min |
| Highlight: | Frozen electric meat mincer machine,Duck Skeleton electric meat mincer machine,Vertical onion mincer machine |
||
Vertical Frozen Meat Grinder Chicken Skeleton Duck Skeleton Grinder Mincer Machine
Description for Chicken Skeleton Duck Skeleton Grinder Mincer:
Beef Fish Lamb Chopper Mincer Machine is a kind of meat processing equipment with high universality and wide application in the meat production industry. It relies on the screw to push the raw meat in the hopper box to the pre-cutting board, through the rotary extrusion of the screw to make the hole plate and reamer relatively run to cut the raw meat into particle shape, ensuring the uniformity of meat filling. Different combinations of orifice plates can achieve ideal meat fillings.
The meat grinder is a meat processing equipment with high versatility and wide application in the meat product production industry. It relies on the screw to push the raw meat in the hopper box to the pre-cutting board, and the orifice plate and the reamer are rotated relative to each other through the rotary extrusion of the screw, so as to cut the raw meat into particle shapes and ensure the uniformity of the meat filling. . Different meat fillings of ideal requirements can be achieved through different combinations of orifice plates.
Advantages for Chicken Skeleton Duck Skeleton Grinder Mincer:
1. Through the rotation of the screw extrusion orifice and mince, produce relative. operation, so as to cut raw meat into particle shape, to ensure the uniformity of meat.
2. Made of stainless steel of the host machine. The appearance looks beautiful and generous.
3. waterproof electrical buttons, more secure.
4. Large feed inlet, smooth feed, high production efficiency.
5. The discharge port design is reasonable .
6. Copper wire winding thickening, small resistance, not easy to appear card
7.The type gasket is thickened, heat dissipation performance is strong, prevent overheating
8. Low speed spiral rotary extrusion technology to restore the taste of chopped meat, full release of nutrition
9. Features for The tray is made of food-grade stainless steel, which is strong and durable, not rusting and healthy
Application for Chicken Skeleton Duck Skeleton Grinder Mincer:
Technical parameters for Chicken Skeleton Duck Skeleton Grinder Mincer:
| Model | AJR-100 | AJR-120 | AJR-130 | AJR-160 | AJR-200 |
| Dimension(mm) | 960x550x900mm | 960x550x1080mm | 1315x700x1100mm | 1630x1100x1450mm | 1780x1000x1580mm |
| Power(kw) | 5.5kw | 7.5kw | 11kw | 15kw | 22kw |
| Capacity(kg/h) | 300-500kg/h | 1000-1500kg/h | 1500-2000kg/h | 2000-3000kg/h | 3000-5000kg/h |
| Rotation speed(r/min) | 270r/min | 250r/min | 190r/min | 136r/min | 87r/min |
| Weight(kg) | 182kg | 258kg | 700kg | 1200kg | 1860kg |

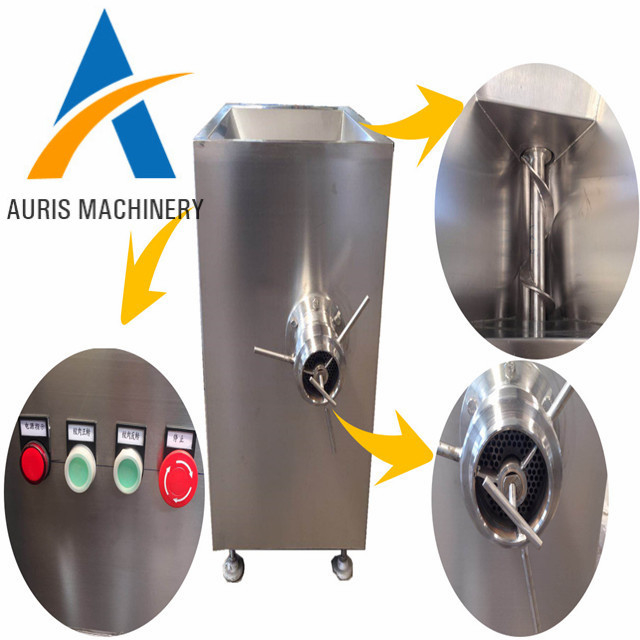

Details for Chicken Skeleton Duck Skeleton Grinder Mincer:
1.The Beef Fish Lamb Chopper Mincer Machine made of 304 stainledd steel,which safe and hydienic,durable.
2.The auger outlet: Removable outlet for easy cleaning.

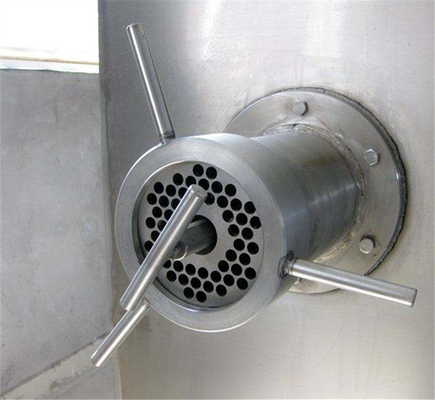

3.Orifice plate:Various specifications of mesh,can twist twist the raw material to 3-30mm .
4.Reamer:The reamer is made of special die steel, which is tough and durable
5.Auger:Cast auger Fast discharge speed.
End production for the Chicken Skeleton Duck Skeleton Grinder Mincer:
