Product Details:
|
| Product Name: | Chocolate Refiner Machine | Power: | 1.5KW |
|---|---|---|---|
| Heating Power: | 500W-220V | Weight: | 320KG |
| Size: | 1.2*0.8*1.1m | Package: | Wooden Case |
20um fineness Chocolate refiner machine 500L 1000L for chocolate making
Introduction:
Chocolate refiner machine is suitable for grinding chocolate, soybean flour and daily chemical raw materials. This refiner is especially suitable for small and medium-sized chocolate confectionery factories, laboratories, shops and other businesses with production process requirements. The milling time is typically 10-16 hours and the average particle size is about 20 microns.
Specification for chocolate refiner machine:
| Model NO. | AQM-5 | AJM-50 | AJM-500 | AQM-1000 |
| Capacity | 5L | 50L | 500L | 1000L |
| Fineness | 20-25um | 20-25um | 20-25um | 20-25um |
| Grinding time | 8-12H | 10-16H | 14-18H | 10-16H |
| Rotation speed | 140RPM | 48RPM | 33RPM | 37 RPM |
| Power | 2.2KW | 1.5KW | 15KW | 14.5KW |
| Heating power | 500W | 500W | 3000W | 6000w |
| Weight | 80KG | 320KG | 2990KG | 4500KG |
| Dimension | 0.7*0.48*0.63m | 1.2*0.8*1.1m | 2.15*1.86*1.25m | 2.8*1.6*2.5m |
Advantages:
The chocolate refiner machine is a double-layer spacer for heat preservation. The temperature can be controlled and adjusted by electric heating. It has good heat preservation performance. The slurry is closed in the process of fine grinding, which meets the requirements of food hygiene.

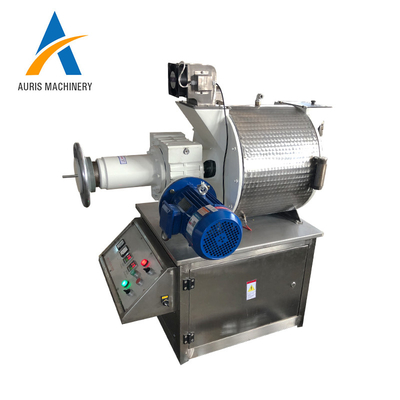

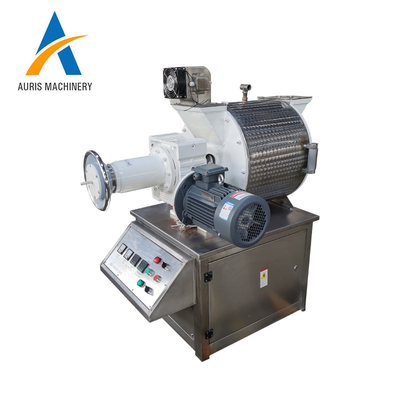

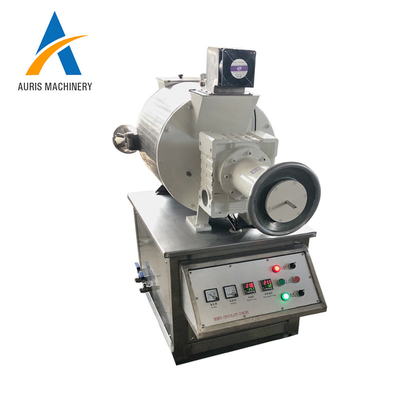

50L refiner:

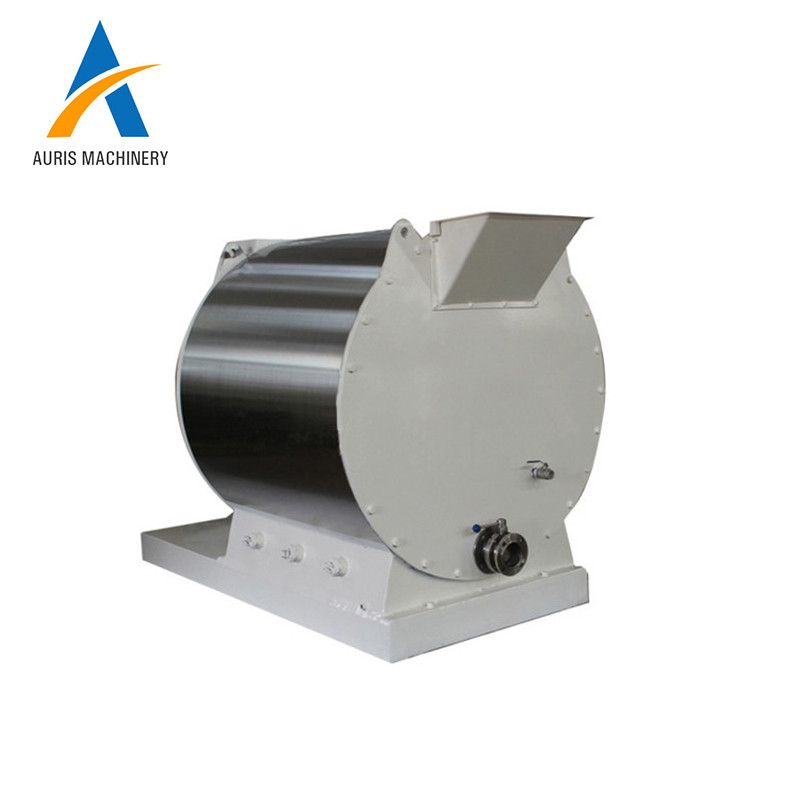

chocolate refining machine with larger capacity:
other chocolate machinery:
