Product Details:
|
| Name: | Sausage Bacon Dried Tofu Meat Smoking Machine | Material: | Stainless Steel |
|---|---|---|---|
| Size: | 196*105*168cm | Trolley Size: | 96*70*87cm |
| Inside Size: | 86*83*89cm | Power: | 16.5kw |
| Capacity: | 30kg/batch | Weight: | 380kg |
| Advantages: | High Productivity | ||
| High Light: | stainless steel 304 meat smoking oven,30kg batch Beef meat smoking oven,Bacon Dried sausage smoke house |
||
Sausage Bacon Dried Tofu Meat Smoking Machine Oven Beef Smoke House
Description for the Sausage Bacon Dried Tofu Meat Smoking Machine:
The smoking furnace is an indispensable equipment in the process of smoking dried tofu. It has the characteristics of fast heating and low energy consumption. It can cook, dry, humidify, bake, smoke, exhaust, clean and other functions. It can adjust the time, temperature, humidity, size of exhaust air, etc. It has an excellent smoke and circulation system, so that the dried bean curd is uniformly colored, and the color is beautiful, ensuring that the dried bean curd has a high yield.
Features for the Sausage Bacon Dried Tofu Meat Smoking Machine:
1. Save time and labor and improve work efficiency.
2. Effectively improve the taste and elasticity of dried tofu.
3. Make the dried beancurd evenly colored and attractive in color.
4. High degree of automation.
5. Made of high quality stainless steel, easy to clean.
Applications for the Fish Deboning Grinding Meat Cutting Machine:
It can also smoke and bake various sausages, dried sausages, ham sausages, dried tofu, roast chicken, roast duck, meat strips, bacon, mutton skewers, red sausages and other products.
Product parameter for the Sausage Bacon Dried Tofu Meat Smoking Machine:
| Model | AYXL-30 | AYXL-50 | AYXL-100 | AYXL-150 | AYXL-250 | AYXL-500 |
| Capacity | 30kg/batch | 50kg/batch | 100kg/batch | 150kg/batch | 250kg/batch | 500kg/batch |
| Power | 16.5kw | 17.2kw | 30kw | 37kw | 45kw | 60kw |
| Size(cm) | 196*105*168 | 200*120*185 | 230*125*210 | 230*122*240 | 260*135*285 | 250*270*315 |
| Weight | 380kg | 460kg | 670kg | 830kg | 1050kg | 2000kg |
| Inside size(cm) | 86*83*89 | 96*92*104 | 123*100*120 | 118*96*153 | 131*107*179 | 140*229*198 |
| Trolley size(cm) | 96*70*87 | 90*77*100 | 96*102*120 | 94*102*149 | 102*102*177 | 102*102*177 |

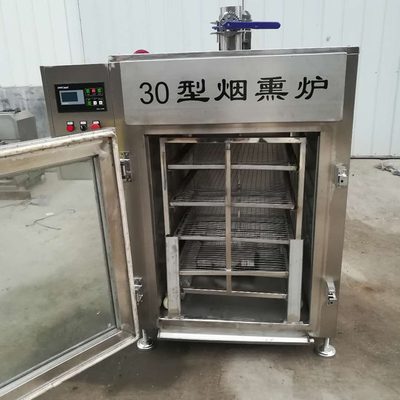

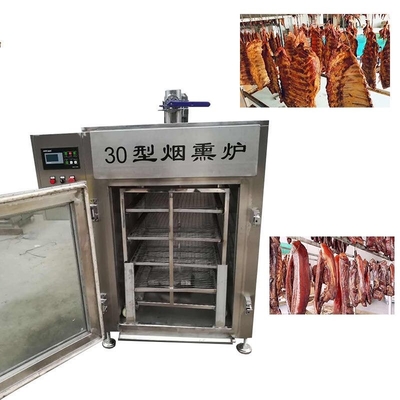

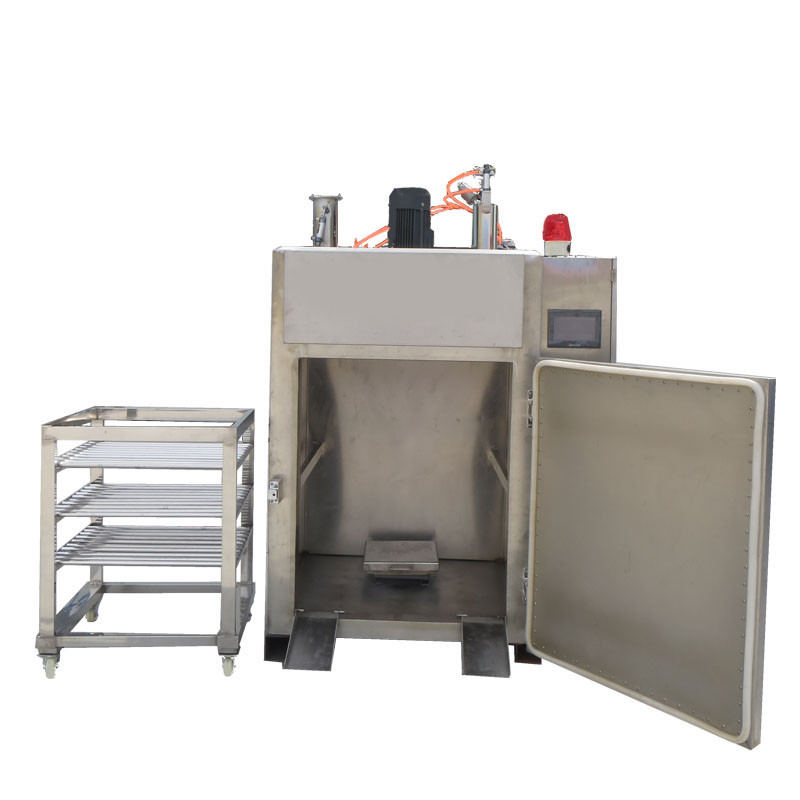

Detail picture for the Sausage Bacon Dried Tofu Meat Smoking Machine:
Operation process for Sausage Bacon Dried Tofu Meat Smoking Machine::
1. Platter. Put the pressed and cut dried tofu on the smoker tray provided by us, and fill the trays of each layer with dried tofu. Be careful to reserve space and do not stack and overlap, which will cause the baking to be in place and the color and luster. uneven.
2. Push the tray full of dried tofu into the smoked tofu oven and close the oven door.
3. Bake. Set the temperature and time through the control button on the left side of the dried beancurd smoker or the PLC computer control panel, then the temperature can be raised and the baking can be started.
4. Smoked. After the skin is slightly dried, turn on the smoke switch, and the smoke can smoke dry tofu inside the smoker body. After the smoking time is up, it will automatically alarm and turn off the smoke switch.
5. Turn on the smoke exhaust switch, after the smoke is exhausted to the outside, turn on the smoker, and you can see the smoked dried tofu.

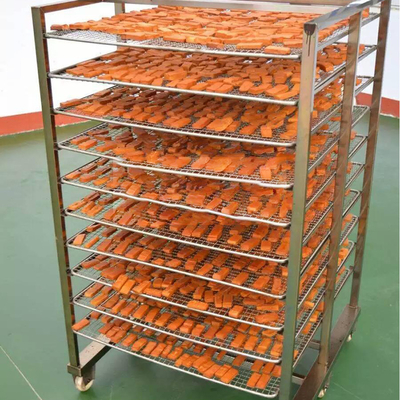

Final productions for Sausage Bacon Dried Tofu Meat Smoking Machine:
