Product Details:
|
| Name: | Chocolate Conch Refiner Grinding Machine | Volume: | 5L |
|---|---|---|---|
| Fineness: | 20-25um | Conching Time: | 8-12H |
| Rotation Speed: | 140RPM | Power: | 2.2KW |
| Size: | 0.7*0.48*0.63m | Weight: | 80KG |
| Warranty: | 12 Months | Condition: | New |
| Material: | Chocolate, Soybean Powder, And Daily Chemical |

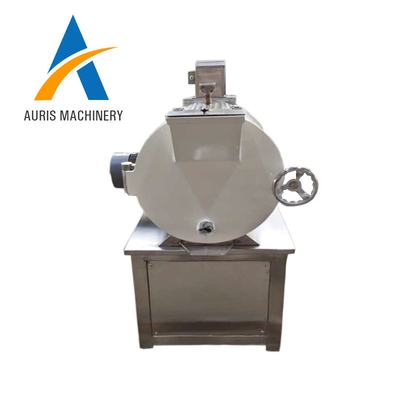

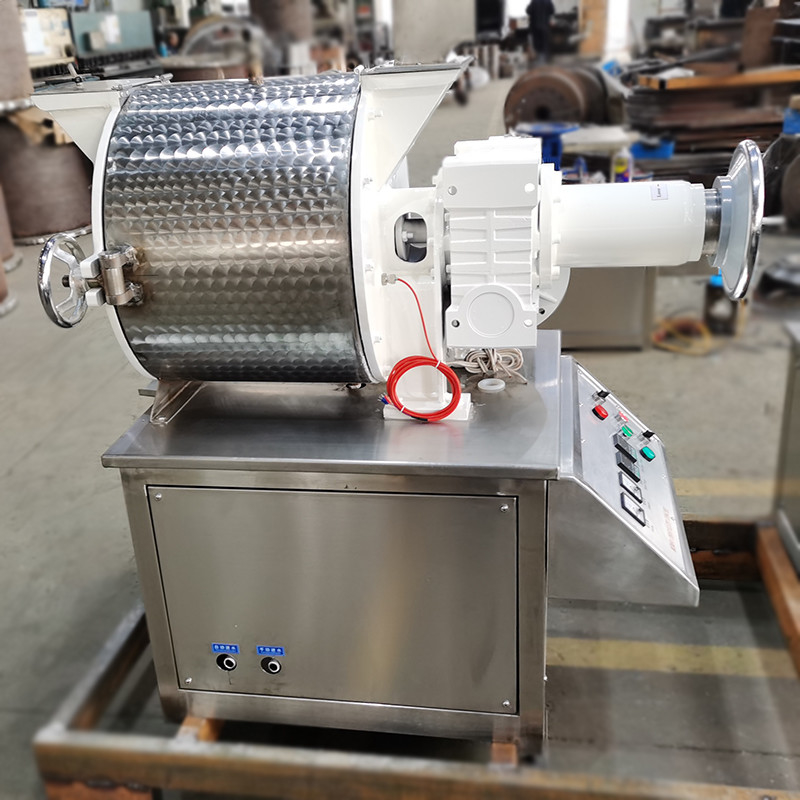

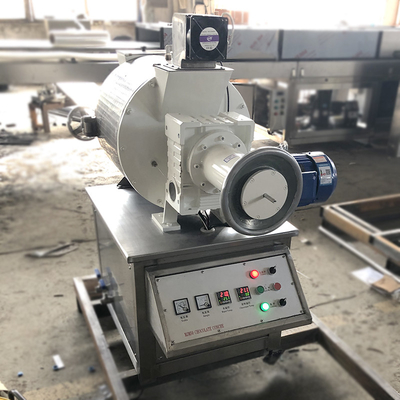

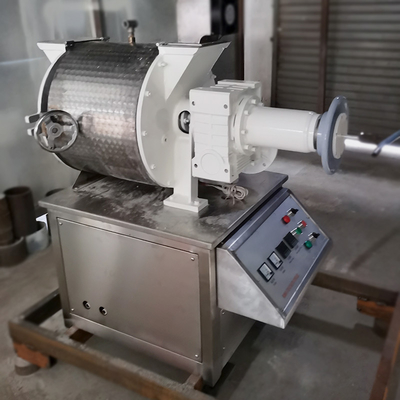

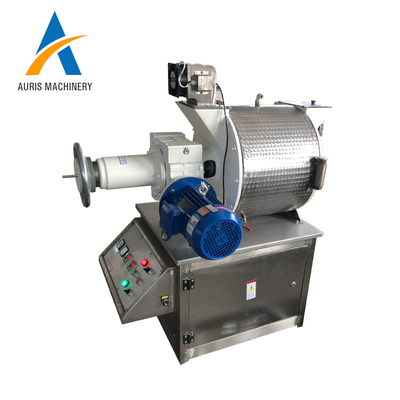

Efficient Chocolate Conch Refiner Grinding Machine Chocolate-Milling-Machine
Description:
Chocolate refiner machine is suitable for grinding chocolate, soybean powder, and daily chemical raw materials. The fine grinding time is generally 10-16 hours, and the average fine particle size is about 20 microns. This refiner is especially suitable for small and medium-sized chocolate candy factories, laboratories, shops and other companies with production process requirements.
1. Cylindrical refiner has the advantages of compact structure, simple operation and convenient maintenance.
2. The cylindrical refiner can mix the raw materials of chocolate slurry evenly. Under the action of lecithin, it has a good effect on the dilution and emulsification of chocolate slurry.
3. It has a good effect on dehydration and deodorization, and can maintain the natural color and aroma of chocolate.
4. The cylindrical refiner is a double-layer spacer for heat preservation. The temperature can be controlled and adjusted by electric heating.
Features:
MJM50 refiner machine is suitable for grinding chocolate, soybean powder, and daily chemical raw materials. The fine grinding time is generally 10-16 hours, and the average fine particle size is about 20 microns.This refiner is especially suitable for small and medium-sized chocolate candy factories, laboratories, shops and other companies with production process requirements.
Parameters:
| Cylinder | φ508mm*398mm |
| Power | 2.2KW |
| Spindle Speed | 48 rpm |
| Fineness | 25-20μm |
| Grinding Time | 10-16 hours |
| Capacity | 50L |
| Dimension | 1200*800*1100mm |
| Weight | 320kg |
| Model | AQM-5 | AJM-50 | AJM-500 | AQM-1000 |
| Volume | 5L | 50L | 500L | 1000L |
| Fineness | 20-25um | 20-25um | 20-25um | 20-25um |
| Conching time | 8-12H | 10-16H | 14-18H | 10-16H |
| Rotation speed | 140RPM | 48RPM | 33RPM | 37 RPM |
| Power | 2.2KW | 1.5KW | 15KW | 14.5KW |
| Heating power | 500W-220V | 500W-220V | 3000W-380V | 6000w,380V |
| Weight | 80KG | 320KG | 2990KG | 4500KG |
| Size | 0.7*0.48*0.63m | 1.2*0.8*1.1m | 2.15*1.86*1.25m | 2.8*1.6*2.5m |
FAQ:
Q: I am new to buy a machine, how should i do?
A: Don't worry, we have professional sales man for u. And they will tell u how to do until u use the
machine well.
Q: How many days we can get the machine?
A: If your machine is sent by express or by air, after we send the machine, u can get the machine in
7-10 days.
If your machine is sent by sea, we need to know your nearest seaport, and then can make sure the
detailed shipping time.
Q: Can i customize the machine or voltage?
A: Sure, we are glad to accept the customized machines. Just tell me the detailed request, and then
we will offer U high quality and best price machines.
Q: Customer Service:
A: Qualty is first, every machine before leave the factory we test it ensure the quality is good.24 hours
online to solve any questions. supply manual book and technical support,maintain video to help you.
