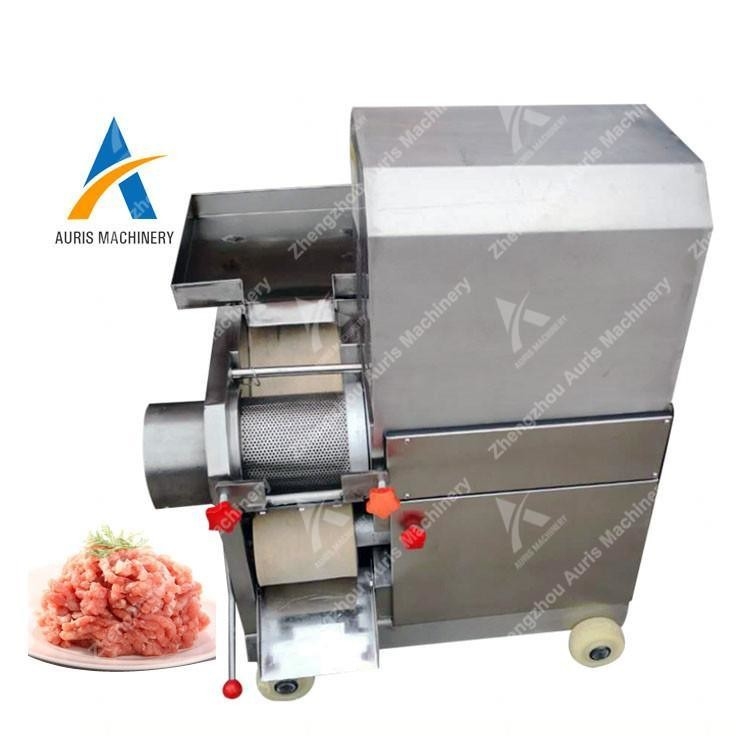

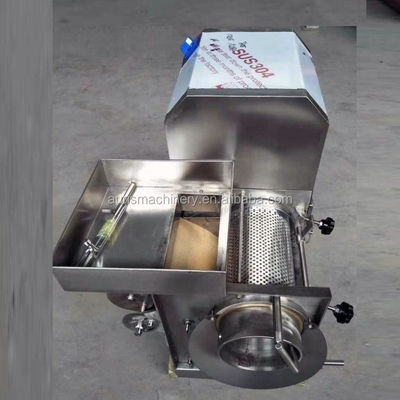

500 Kg/H Fish Processing Machines Picking Extracting Bone Separator Machine

500 Kg/H Fish Processing Machines Picking Extracting Bone Separator Machine
500 Kg/H Fish Processing Machines Picking Extracting Bone Separator Machine 500 Kg/H Fish Processing Machines Picking Extracting Bone Separator Machine 500 Kg/H Fish Processing Machines Picking Extracting Bone Separator Machine 500 Kg/H Fish Processing Machines Picking Extracting Bone Separator Machine

Large Image :  500 Kg/H Fish Processing Machines Picking Extracting Bone Separator Machine

Product Details:
Place of Origin: Henan, China
Brand Name: Auris
Certification: CE ISO
Model Number: AYR-300
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $1200-1355 1-5 sets
Packaging Details: Export wooden box packaging
Delivery Time: 5-8 working days
Payment Terms: T/T, Western Union, L/C, MoneyGram
Supply Ability: 500 sets per month

500 Kg/H Fish Processing Machines Picking Extracting Bone Separator Machine

Description
Model NO.: AYR-300 Voltage: 220V/380V
Material: 304 Stainless Steel Function: Separate Bone And Meat
Suitable For: Fish Shrimp Crabs Power: 2.2kw
Size: 950*720*950mm Weight: 210kg
Transport Package: Wooden Case Supply Ability: 280kg/H
High Light:

2.2kw Fish Processing Machines

,

500 Kg/H Fish Processing Machines

,

Picking bone separator machine



Product Description

500 kg/h Fish Bone Removal Separator Machine Fish Meat Picking Extracting Machine
Product Description

Introduction for fish meat separator:
The fish meat separator  machine can separate fish meat from fish bone, fish skin, fish tendon with high rate, in order to raise the fish use rate and save manpower.This fish deboner is mainly made by stainless steel.It can debone small whole fish and half bigger fish and fish leftover.It is also used for getting shrimp meat from shells, both big and small shrimp can be processed by the fish deboning machine.It is equipped with rubber bands for meat barrel and meat squeeze. By the mutual squeezing motion of scrolling meat barrel and rotary rubber bands,squeeze the fish into fish drums, and then leave the skins and bones outside the drum, and at last wiped out of the machine by the scraper.



Features of fish meat separator:
1. The fish skin and fish bone are scraped off the take-up of the barrel by the scraper attached to the machine. Clean and convenient
2. The entire meat separation process does not require manual operation and is convenient for hygiene.
3. The amount of adjustment can be flexibly adjusted according to the size of the fish.

500 Kg/H Fish Processing Machines Picking Extracting Bone Separator Machine 0
Product Parameters
Model AYR-150 AYR-200 AYR-300 AYR-350
Power 2.2kw 2.2kw 3kw 4kw
Capacity 180kg/h 280kg/h 500kg/h 1000kg/h
Belt length 1195mm 1450 mm 1450 mm 1450 mm
Belt thickness 20mm 20mm 20mm 20mm
Belt width 155mm 205mm 305mm 355mm
Drum diameter 159mm 219mm 219mm 219mm
Roller thickness 6mm 8mm 8mm 8mm
Mesh diameter 2.7mm(Can be customized) 2.7mm(Can be customized) 2.7mm(Can be customized) 2.7mm(Can be customized)
Weight 180kg 210kg 360kg 450kg
Size 900*680*850mm 950*720*950mm 1050*750*970mm 1200*900*1100mm

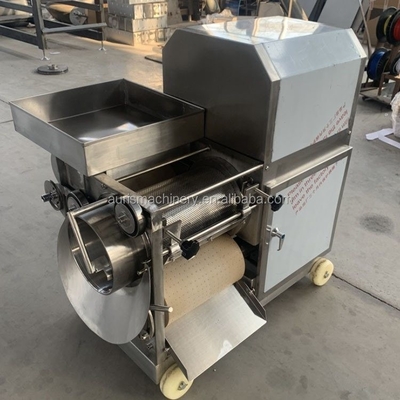

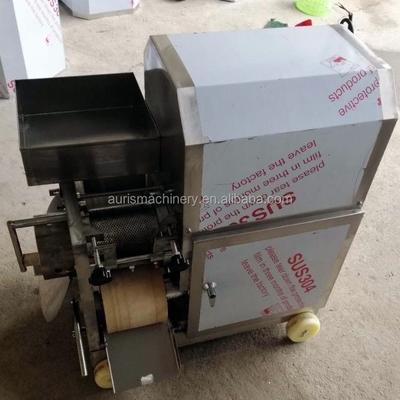

Detailed Photos
500 Kg/H Fish Processing Machines Picking Extracting Bone Separator Machine 1

Application:
The Fish debarking machine is suitable for all kinds of marine fish and freshwater fish. The big fish is divided into sections, and the small fish directly collects the meat. The fish flesh and the fish bones, the fish skin, and the fish tendons in the fish body can be separated, so as to achieve the purpose of improving the utilization rate of raw materials, saving labor costs, and improving the economic value of low-value fish.

1. The machine is mainly used in fish meat collect and pick up. This machine can separate fish meat from fish bone, fish skin, fish tendon in order to raise the fish use rate and save manpower. This machine is mainly made by stainless steel.. it can debone small whole fish or half bigger fish or fish leftove.
2. The whole machine is made of high quality stainless steel, it is anti-  corrosive, which meets the national food hygiene standards.
3. The machine is used for the collection and extraction of the fish flesh.
4. Fast removing and separating speed, high capacity, proper for fish meat ball making, fish
meat collecting, fish meat patty making, fish meat food processing,The extracted fish flesh
can be directly used to make  minced fillet products such as fish ball, fish noodle.
500 Kg/H Fish Processing Machines Picking Extracting Bone Separator Machine 2
500 Kg/H Fish Processing Machines Picking Extracting Bone Separator Machine 3
500 Kg/H Fish Processing Machines Picking Extracting Bone Separator Machine 4

500 Kg/H Fish Processing Machines Picking Extracting Bone Separator Machine 5
500 Kg/H Fish Processing Machines Picking Extracting Bone Separator Machine 6

500 Kg/H Fish Processing Machines Picking Extracting Bone Separator Machine 7

Certifications

500 Kg/H Fish Bone Removal Separator Machine Fish Meat Picking Extracting Machine

Packaging & Shipping

500 Kg/H Fish Bone Removal Separator Machine Fish Meat Picking Extracting Machine500 Kg/H Fish Bone Removal Separator Machine Fish Meat Picking Extracting Machine500 Kg/H Fish Bone Removal Separator Machine Fish Meat Picking Extracting Machine500 Kg/H Fish Bone Removal Separator Machine Fish Meat Picking Extracting Machine



FAQ:

Q: I am new to buy a machine, how should i do?

A: Don't worry, we have professional sales man for u. And they will tell u how to do until u use the

machine well.

Q: How many days we can get the machine?

A: If your machine is sent by express or by air, after we send the machine, u can get the machine in

7-10 days.

If your machine is sent by sea, we need to know your nearest seaport, and then can make sure the

detailed shipping time.

Q: Can i customize the machine or voltage?

A: Sure, we are glad to accept the customized machines. Just tell me the detailed request, and then

we will offer U high quality and best price machines.

Q: Customer Service:

A: qualty is first, every machine before leave the factory we test it ensure the quality is good.24 hours

online to solve any questions. supply manual book and technical support,maintain video to help you.
