Product Details:
|
| Application: | Food | Power: | Electric |
|---|---|---|---|
| Automation: | Automatic | Object State: | Bread Moon Cake,etc |
| Customization: | Available | Customized Request | Type: | Multi-Function Packaging Machine |
| Voltage: | 380V | Warranty: | 1 Year |
| High Light: | 380V vacuum packaging machine,Double Chamber vacuum packaging machine,Moon cake packaging machine |
||

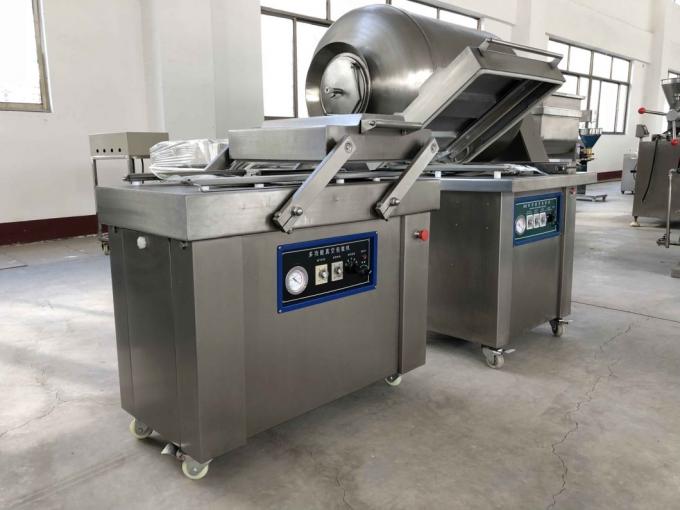

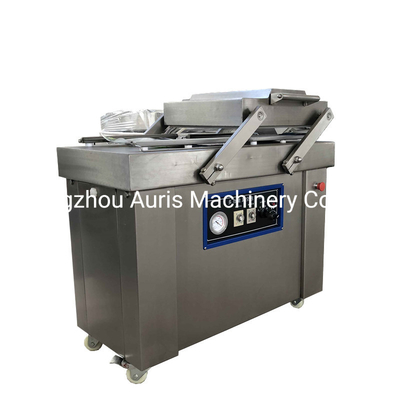

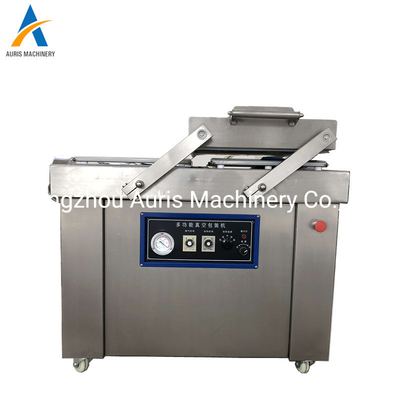

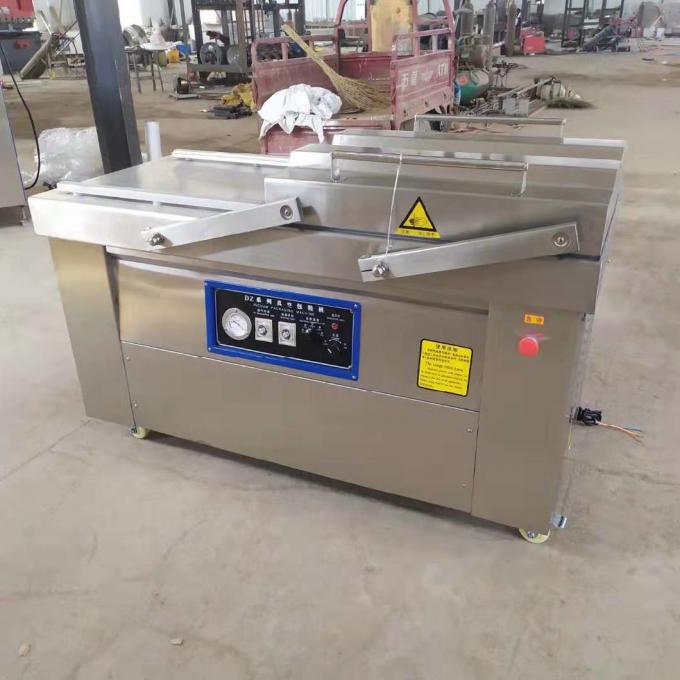

This flat-panel double-chamber vacuum packaging machine adopts a microcomputer operating system, and has the ability to vacuum and seal twice. It can vacuum and seal for different packaging materials and packaging requirements for cooling, air intake and opening of the cover, and the whole process is automatically controlled. The machine is equipped with vacuum degree heat sealing time and other adjustment devices to achieve the ideal packaging effect. According to the requirements of users, it can be equipped with a printing device that is easy to change and clear, that is, when the seal is sealed, the expiration date or factory number is printed on the sealing line to comply with the provisions of the national food labeling law.
This machine has two real enterprise rooms that work in turn. The vacuum chamber is made of stainless steel. The upper and lower studios are all made of stainless steel. The overall structure is reasonable. The air port is good, beautiful and durable, and conforms to food hygiene and 1 square corner. There is a set of hot press seals that should be installed in the channel, and adopt a balanced structure to stay at any position and have a slow protection. The items after the empty packaging can prevent oxidation, and the moldy frog can be exposed to moisture to extend the product storage period.
| Model | A-400 | A-400S | A-500 | A-600 |
| Single seal size | L400*10mm | L400*10mm | L500*10mm | L600*10mm |
| Power | 900W | 900W | 2.4KW | 2.4KW |
| Vacuum chamber size | 400*350*80mm | 420*400*120mm | 570*550*120mm | 670*550*120mm |
| Effective size | 350*300*60mm | 370*350*80mm | 520*500*80mm | 620*500*80mm |
| Pumping speed | 20m³/h | 20m³/h | 40m³/h | 40m³/h |
| Voltage | 220V 50HZ | 220V/380V 50HZ | 220V/380V 50HZ | 220V/380V 50HZ |
| Number of vacuum pumps | Single pump | Single pump | Double pump | Double pump |
| Dimension | 990*630*890mm | 1000*650*900mm | 1370*650*1020mm | 1400*650*1020mm |
Features of the vacuum packing machine
1. The machine is made of 304 stainless steel with a thickness of 3mm. The control panel is controlled by a time relay. The operation is simple and convenient. The time can be adjusted according to different packaging requirements and different packaging materials. You only need to press the vacuum chamber cover when working. Complete the whole process of vacuum packaging according to automatic procedures.
2. This machine adopts a dedicated 63 type vacuum pump, and the vacuum degree reaches the national requirement.
3. The equipment has a water removal function, which can effectively protect the vacuum pump and prolong the service life of the equipment.
4. The circuit system is sealed to avoid water splashing into the electrical system and causing malfunctions.
5. This machine has the characteristics of complete functions, stable and reliable performance, wide application range, good sealing strength, convenient use and maintenance, etc. It is an ideal vacuum packaging machine at present.
