24kw Bean To Bar Chocolate Machine 200kg Cacao Powder Production Line

24kw Bean To Bar Chocolate Machine 200kg Cacao Powder Production Line
24kw Bean To Bar Chocolate Machine 200kg Cacao Powder Production Line 24kw Bean To Bar Chocolate Machine 200kg Cacao Powder Production Line 24kw Bean To Bar Chocolate Machine 200kg Cacao Powder Production Line 24kw Bean To Bar Chocolate Machine 200kg Cacao Powder Production Line

Large Image :  24kw Bean To Bar Chocolate Machine 200kg Cacao Powder Production Line

Product Details:
Place of Origin: Henan, China
Brand Name: Auris
Certification: CE ISO
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $15,000.00/sets >=1 sets
Delivery Time: 15-30 work days
Payment Terms: L/C, D/P, T/T, Western Union, MoneyGram, D/A
Contact Now

24kw Bean To Bar Chocolate Machine 200kg Cacao Powder Production Line

Description
Applicable Industries: Food & Beverage Factory, Food Shop, Food & Beverage Shops Core Components: Motor
Voltage: 220v Power: 24kw
Dimension(L*W*H): 2260*1100*1650mm Weight: 500 KG
Application Fields: Snack Food Factory, Commercial Catering, Bakery Raw Material: Cocoa
Output Product Name: Cocoa Powder Name: Cocoa Powder Production Line
Application: Food Industry Function: Peeling Grinding Pressing
Capacity: 200kg/h Material: 304 Stainless Steel
Heating Source: Electricity Advantage: Easy Operation High Efficiency
Feature: Food Grade Level Machine
Highlight:

24kw Bean To Bar Chocolate Machine

,

200kg Bean To Bar Chocolate Machine

,

Cacao powder production line


200kg Cacao Powder Making Producing Line Cacao Bean To Bar Chocolate Machine



Description:
24kw Bean To Bar Chocolate Machine 200kg Cacao Powder Production Line 0

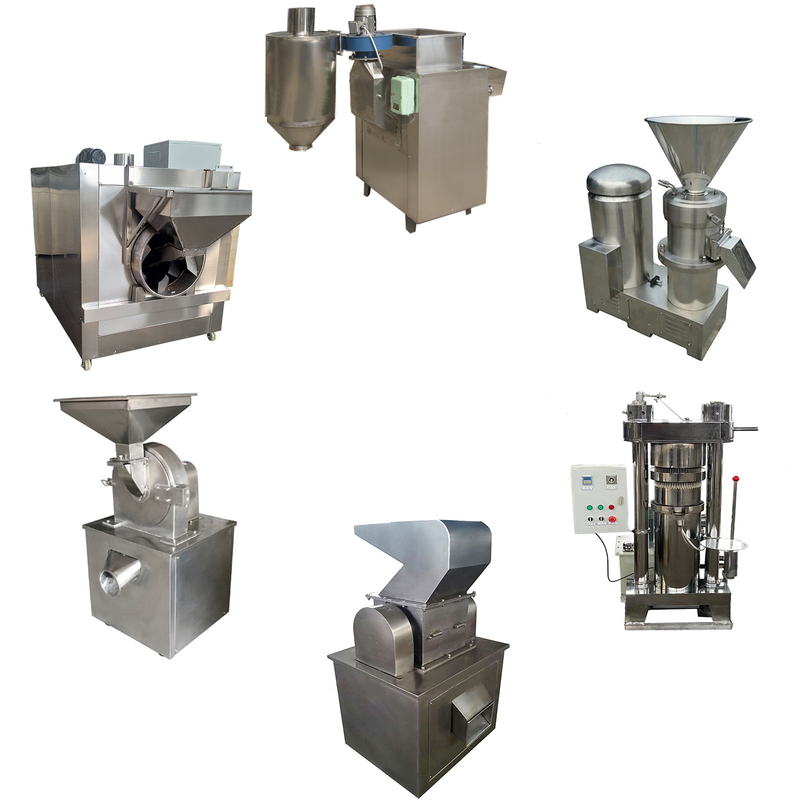

The cocoa powder production line can produce cocoa beans into fine cocoa powder through six machines.

After the cocoa beans are roasted in the roasting machine, they are put into the peeling machine. The peeling machine will peel and crush the roasted cocoa beans to obtain cocoa nibs. Then the cocoa nibs are ground into cocoa butter through colloid grinding machine, and the cocoa butter is passed through Oil press to remove oil. Then the cocoa powder is obtained through roughly grinding machine and a finely grinding machine.
Flow chart:
24kw Bean To Bar Chocolate Machine 200kg Cacao Powder Production Line 1
Product Pictures
24kw Bean To Bar Chocolate Machine 200kg Cacao Powder Production Line 2


Step 1: cocoa bean roasting
Roller roasting equipment adopts rotary rolling cage and special high-quality infrared catalytic burner to realize flameless catalytic combustion of natural gas and liquefied petroleum gas. Roller baking machine is equipped with automatic temperature control device. In the process of baking, the object to be baked is continuously pushed by the propulsion device in the cylinder to form an uninterrupted cycle, which makes it heated evenly and effectively ensures the baking quality.


Step 2: cocoa bean peeling
The cocoa beans are put into the feeding hopper, rolled and peeled by the stripping roller, and then dropped to the vibrating
screen for screening. The different sizes of peeled cocoa beans are sucked to the outside of the machine by the wind power for storage. The peeled cocoa beans are discharged through the port. All peeled cocoa beans can be separated by adjusting the wind power and the peeling gap.
24kw Bean To Bar Chocolate Machine 200kg Cacao Powder Production Line 3
24kw Bean To Bar Chocolate Machine 200kg Cacao Powder Production Line 4

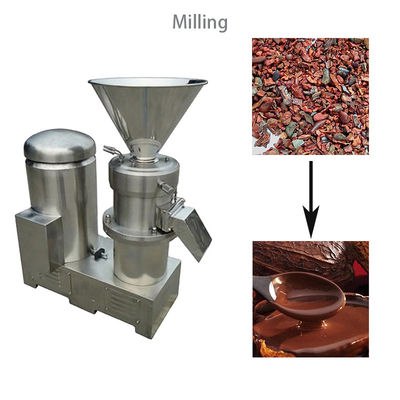

Step 3: cocoa nibs milling
The principle of colloid mill is that the material is effectively crushed, emulsified, homogenized and warmed by the strong shear
force, friction force and high-frequency vibration through the high-speed relatively linked fixed teeth and moving teeth, so as to
obtain satisfactory fine processing products.

Step 4: cocoa butter pressing
oil pressing machine is a kind of small oil press with simple operation, high oil yield and less replacement of vulnerable parts in mechanical oil press.
oil extractor is a high-quality equipment to replace the manual operation of small mill sesame oil. This hydraulic oil press has a
wide range of applications. The structure is stable and has a long operating life. Simple to operate and convenient for daily
maintenance.
24kw Bean To Bar Chocolate Machine 200kg Cacao Powder Production Line 5
24kw Bean To Bar Chocolate Machine 200kg Cacao Powder Production Line 6

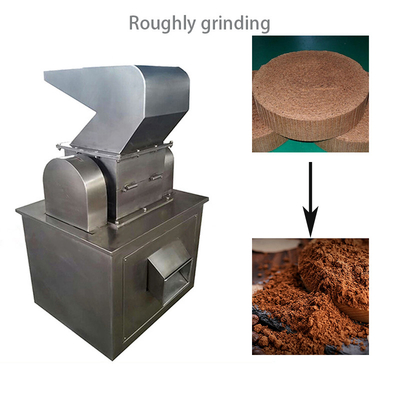

Step 5: cocoa powder roughly grinding
The material enters the crushing chamber from the hopper of the crusher, and the crushing effect is obtained by shearing with a
rotating knife and a fixed impact. After the action of the rotating centrifugal force, the material automatically flows to the outlet of the crusher.
This grinder is suitable for the coarse crushing of a variety of chemical, pharmaceutical, food and other hard materials. It has a compact structure, simple operation, low noise, low energy consumption, and good crushing effect.




Step 6: cocoa powder finely grinding
This flour milling grinding crushing machine makes use of the relative motion between the active fluted disc and fixed fluted disc
to impact, grind and crush the material.
The fineness of crushed material can be adjusted by changing the filter net with different aperture, widely used in pharmaceutical, food, chemical and other industries and is the ideal crushing equipment at present.
24kw Bean To Bar Chocolate Machine 200kg Cacao Powder Production Line 7
Detailed Pictures
24kw Bean To Bar Chocolate Machine 200kg Cacao Powder Production Line 8

FAQ:

Q: I am new to buy a machine, how should i do?
A: Don't worry, we have professional sales man for u. And they will tell u how to do until u use the
machine well.
Q: How many days we can get the machine?
A: If your machine is sent by express or by air, after we send the machine, u can get the machine in
7-10 days.
If your machine is sent by sea, we need to know your nearest seaport, and then can make sure the
detailed shipping time.
Q: Can i customize the machine or voltage?
A: Sure, we are glad to accept the customized machines. Just tell me the detailed request, and then
we will offer U high quality and best price machines.
Q: Customer Service:
A: Qualty is first, every machine before leave the factory we test it ensure the quality is good.24 hours
online to solve any questions. supply manual book and technical support,maintain video to help you.
