Product Details:
|
| Model NO.: | AG-260 | Power (Kw): | 11 |
|---|---|---|---|
| Material: | SUS304, SUS316L, SUS304 | Type: | Grinder |
| Voltage: | 220V/380V | Weight (Kg): | 2200 Kg |
| Advantage: | High Effieciency | Core Components: | Motor, Engine |
| MOQ: | 1 Set | Specification: | 1460*1280*1220 |
| Origin: | Henan, China | Supply Ability: | 2400 Pieces/Year |
| Output (Kg/H): | 300 - 500 Kg/H | Output Size (Mesh): | 3 - 25 Mesh |
| Range Of Spindle Speed(r.p.m): | 22 - 180 R.p.m | Feeding Size (mm): | 1 - 150 Mm |

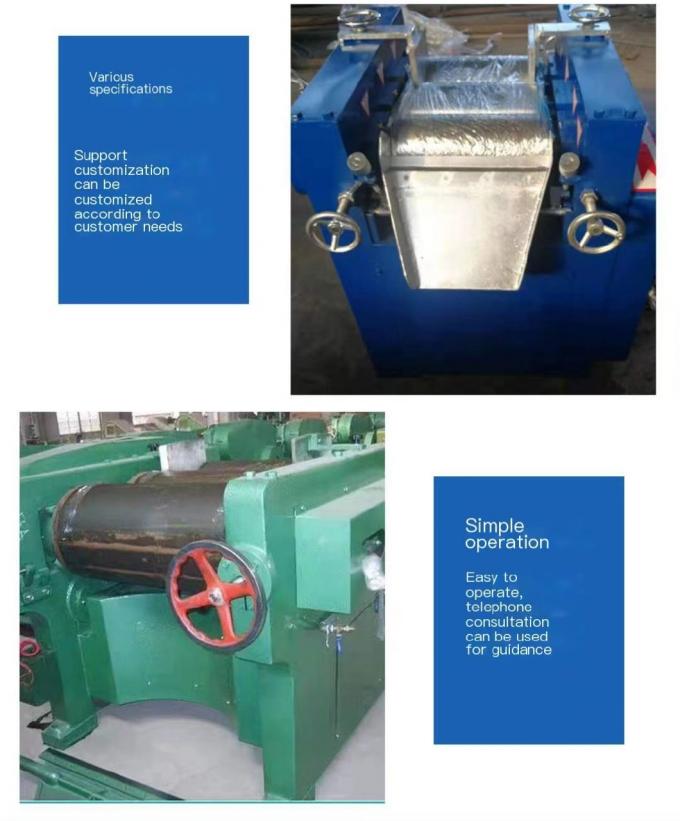

| Customization: | Available | Customized Request |
Description:
Structure and working principle:

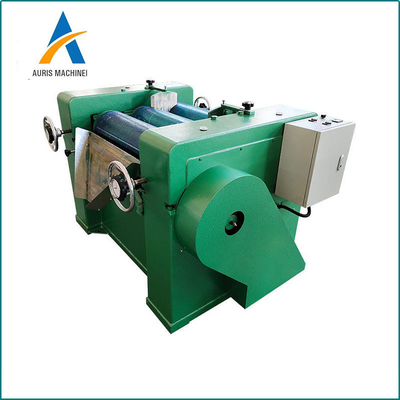

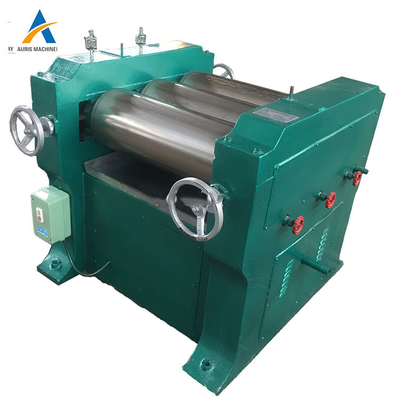

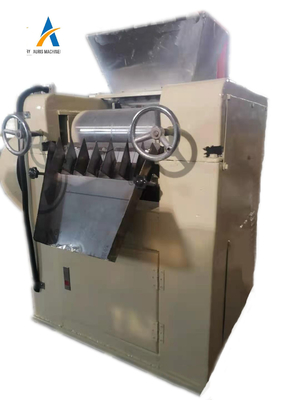

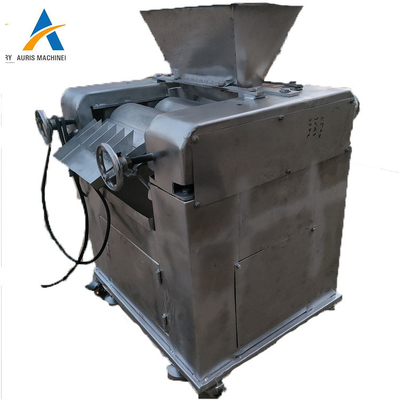

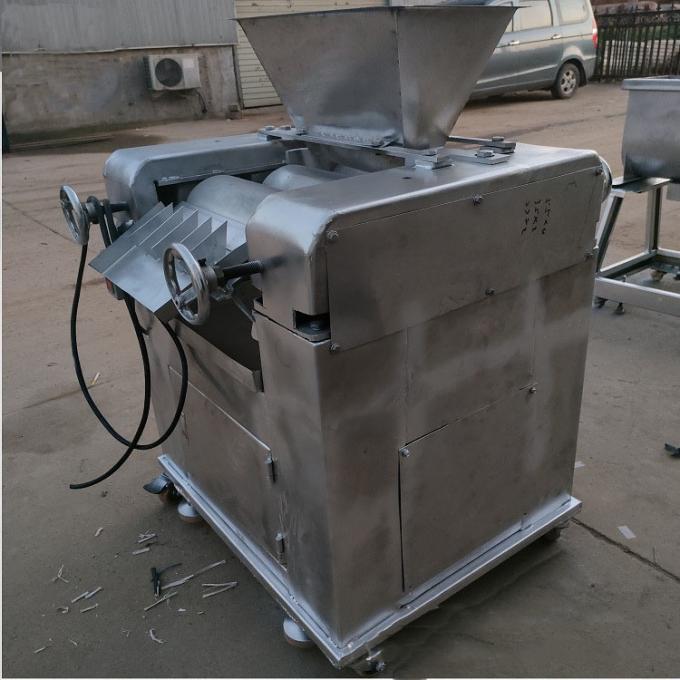

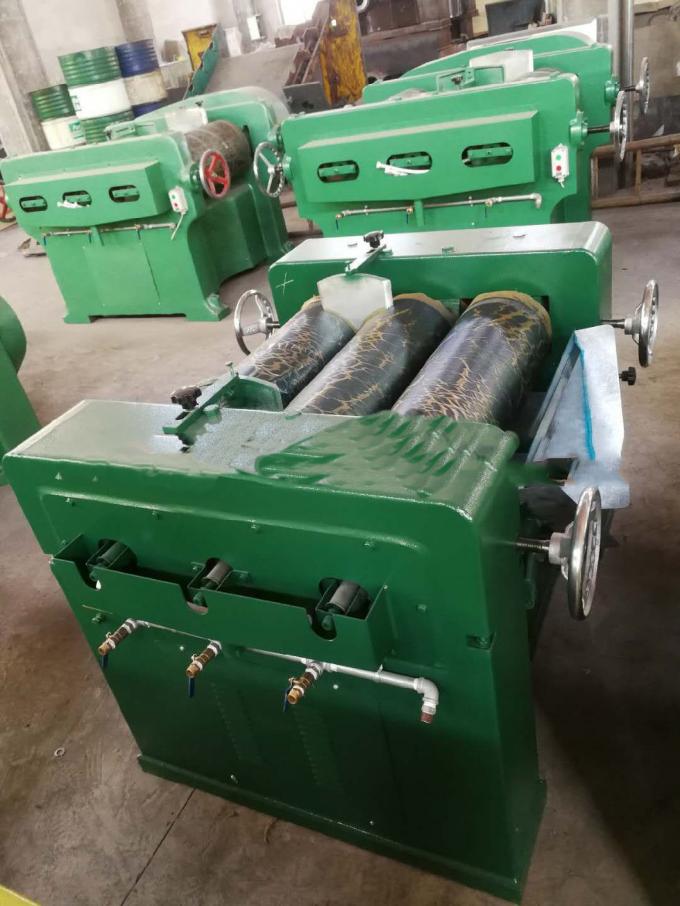

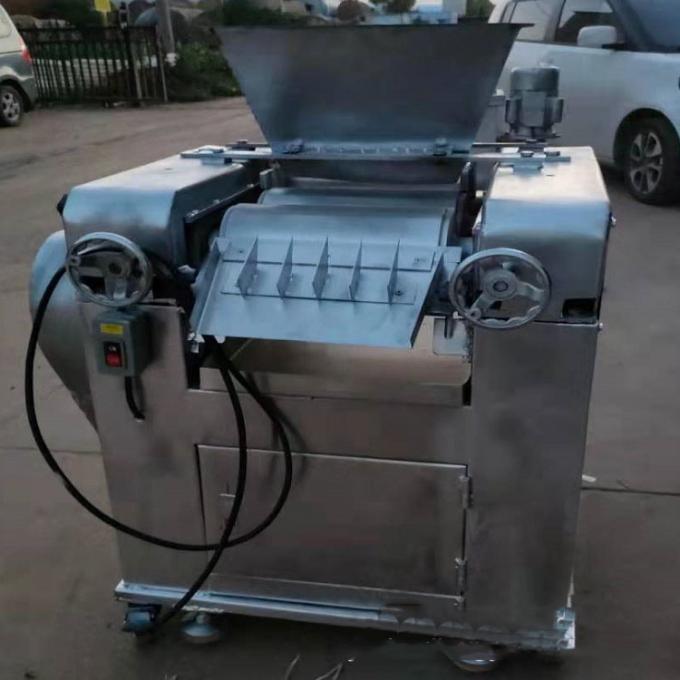

1.Three-roll mill for short, three-roll mill can be divided into two types: experimental three-roll mill and production three-roll mill.
2.Three-roll grinding is suitable for the manufacture of slurries such as paints, inks, pigments and plastics.
The working principle of the three-roll mill: The three-roll mill produces the grinding effect through the mutual extrusion of the surfaces of the three horizontal rollers and friction at different speeds.
3.The three-roll mill is a grinding and dispersing equipment for high-viscosity materials. Mainly used for the research of liquid slurries and paste-like materials such as paints, inks, pigments, plastics, cosmetics, soaps, ceramics, rubber, etc.
| Model | power (kw) | Roller diameter(mm) | Roller length(mm) | slow speed(mm) | medium speed(rpm) | fast speed(rpm) | weight(Kg) |
| AG-65 | 0.75 | 65 | 125 | 26 | 70 | 145 | 85 |
| AG-100 | 1.5 | 100 | 120 | 40 | 86 | 186 | 200 |
| AG-120 | 1.5 | 120 | 280 | 26 | 70 | 186 | 450 |
| AG-150 | 2.2 | 150 | 300 | 34 | 78 | 180 | 550 |
| AG-260 | 7.5 | 260 | 675 | 22 | 64 | 182 | 2200 |
| AG-405 | 15 | 405 | 810 | 14 | 42 | 130 | 5200 |
