Stainless Steel 304 Chocolate Refiner Machine 50L 1000l Conche Chocolate Machine

Large Image : Stainless Steel 304 Chocolate Refiner Machine 50L 1000l Conche Chocolate Machine

Product Details:

Place of Origin:	Henan, China
Brand Name:	Auris
Certification:	Providing

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$2,950.00/sets 1-4 sets
Delivery Time:	15-30 work days
Payment Terms:	L/C, D/P, T/T, Western Union, MoneyGram, D/A

Contact Now

Stainless Steel 304 Chocolate Refiner Machine 50L 1000l Conche Chocolate Machine

Description

Applicable Industries:	Food & Beverage Factory, Home Use, Food & Beverage Shops	Core Components:	Engine, Bearing, Gearbox, Pump
Voltage:	380V	Power:	2.2 KW
Dimension(LWH):	1.20.81.1M	Weight:	320 KG
Application Fields:	Snack Food Factory	Machinery Function:	Grind Chocolate To Good Fineness
Output Product Name:	Chocolate	Material:	Stainless Steel 304
Color:	Silver	Usage:	Refining And Conching Chocolate
Volume:	50L	Fineness:	20~25um
Conching Time:	10~16H	Rotation Speed:	140rpm
Capacity:	50 L / 500 L / 1000 L
High Light:	Stainless Steel 304 chocolate refiner machine , 50L chocolate refiner machine , 1000l conche chocolate machine

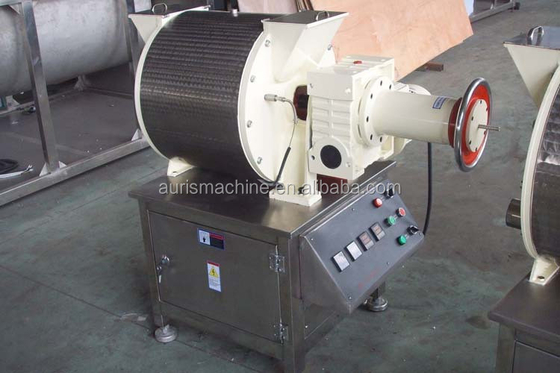

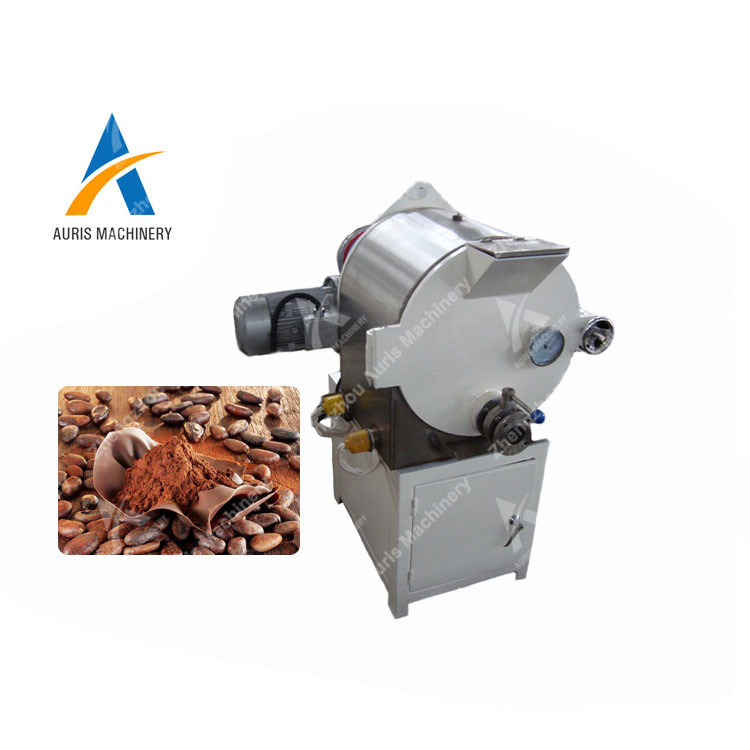

Stainless Steel 304 Chocolate Refiner Machine Chocolate Conche Refining Machine

Description:

Chocolate refiner is the main machine for process chocolate product,also suitable for oil material and other chemical materials.
Conching time is about 7-9 hours, the fineness can reach 20 um.
The machine is with compact structure,simple operation, easy maintenance and low cost.

Specifications :

model	AQM-5	AJM-50	AJM-500	AQM-1000
volume	5L	50L	500L	1000L
fineness	20-25um	20-25um	20-25um	20-25um
conching time	8~12H	10~16H	14~18H	10~16H
Rotation speed	140rpm	48rpm	33rpm	37rpm
Power	2.2kw	1.5kw	15kw	14.5kw
Heating power	500 W - 200 V	500 W- 200 V	3000 W - 380 V	6000 W - 380 V
weight	80kg	320kg	2990kg	4500kg
Size	0.70.480.63m	1.20.81.1m	2.151.861.25m	2.81.62.5m

Detailed Images:

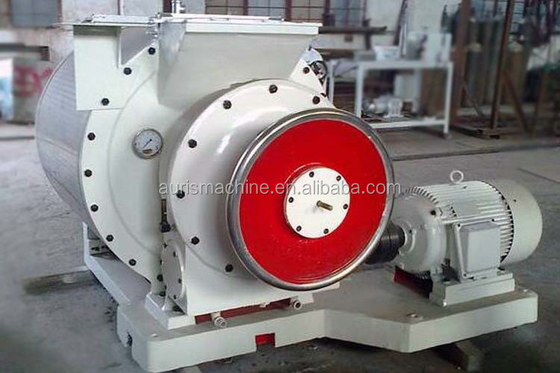

Picture of 500L model We have 50L, 500L,1.0t, 2.0t,3.0t...

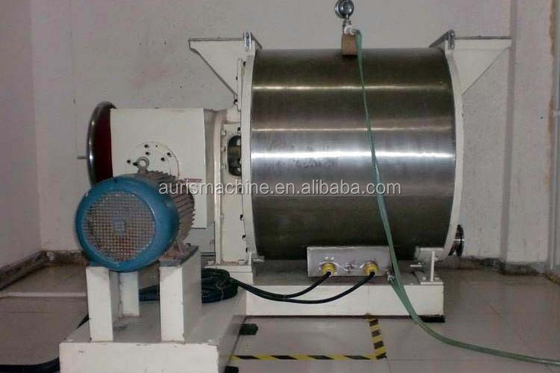

Below is picture of 1.0ton, Could customize the volume you need

Chocolate conche refiner can be used with warm tank, mixing device or ball mill to improve work efficiency

Ball mill & conche refiner combination system achieves all of the advantages between them,this combination has resulted in a reduction in the grinding time,which only require 3-3.5hours to completely grind the chocolate,and with the conche refiner's help chocolate get dehydration and deodorization to ensure the final quality is excellent.Furthermore,Complared to traditional high-speed ball mill equipment,The price is more affordable..
