Milling Cocoa Powder Production Line 200kg Powder Maker Machine

Large Image : Milling Cocoa Powder Production Line 200kg Powder Maker Machine

Product Details:

Place of Origin:	Henan
Brand Name:	Auris
Certification:	Providing

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$15000/set
Delivery Time:	15-30 work days
Payment Terms:	L/C, D/P, T/T, Western Union, MoneyGram, D/A

Contact Now

Milling Cocoa Powder Production Line 200kg Powder Maker Machine

Description

Model NO.:	ACP-200	Press Materials:	Cocoa Bean
Press Series:	Second	Condition:	New
Customized:	Customized	Name:	Cocoa Powder Production Line
Material:	Cocoa Beans	End Product:	Cocoa Powder
Capacity:	200kg	Number Of Machines:	6
Feature:	High Efficiency	Advantage:	Great Coordination Between Machines
Energy:	Electric	Apply:	Commercial Industrial
Specification:	Customized	Type:	Flour Mill
Application:	Beans	Voltage:	220V
Appearance:	Vertical	Customization:	Available \| Customized Request
High Light:	Milling cocoa powder production line , 200kg cocoa powder production line , 220V powder maker machine

ACP-200 Cocoa Powder Processing Production Line Cocoa Powder Maker Roasting Peeling Milling Machine

Description:

Cocoa Powder Processing Production Line Cocoa Powder Maker Roasting Peeling Milling Crushing Grinding Machine

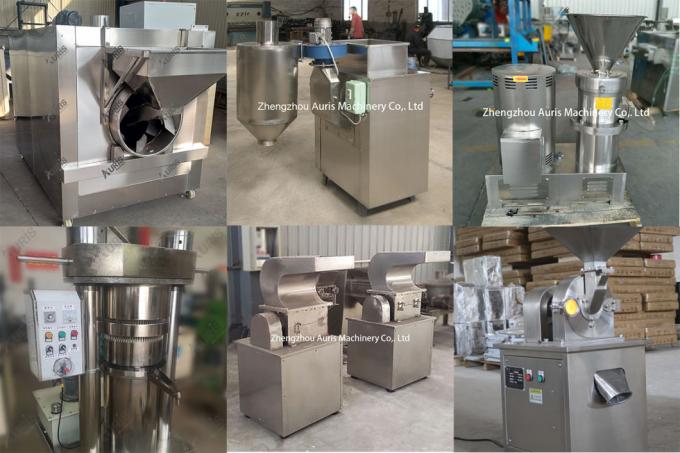

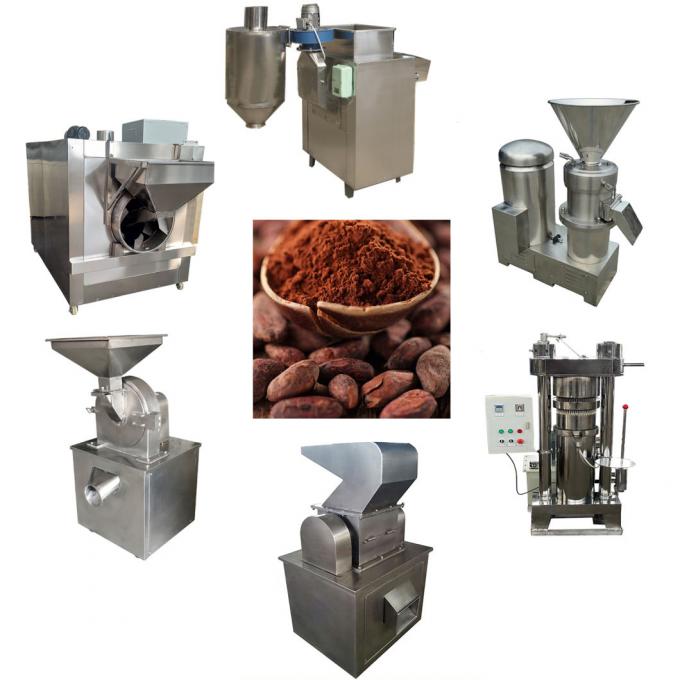

The cocoa powder production line can produce cocoa beans into fine cocoa powder through six machines.

In the production process, the feeding and discharging are carried out manually, which saves costs.

After the cocoa beans are roasted in the roasting machine, they are put into the peeling machine. The peeling machine will peel and crush the roasted cocoa beans to obtain cocoa nibs. Then the cocoa nibs are ground into cocoa butter through colloid grinding machine, and the cocoa butter is passed through Oil press to remove oil. Then the cocoa powder is obtained through a roughly grinding machine and a finely grinding machine.

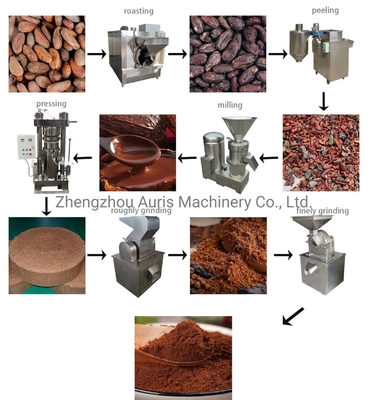

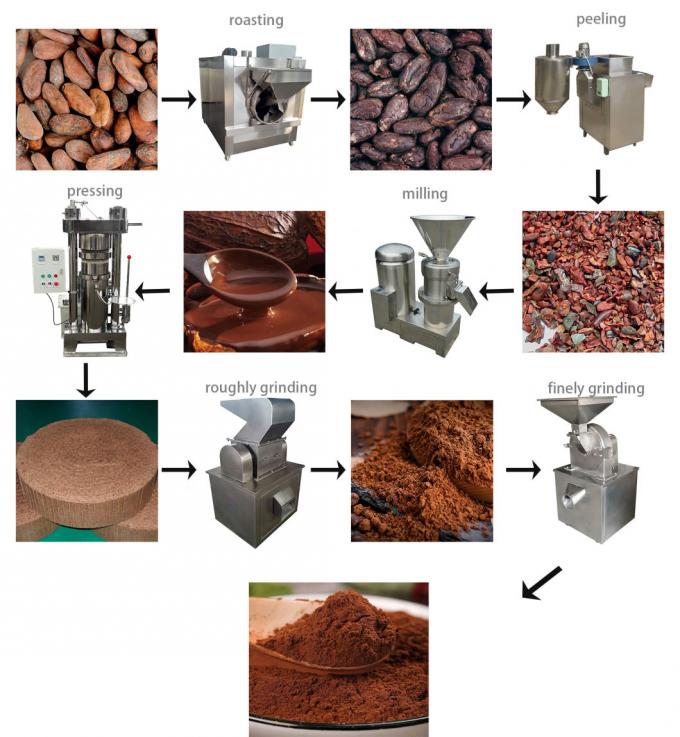

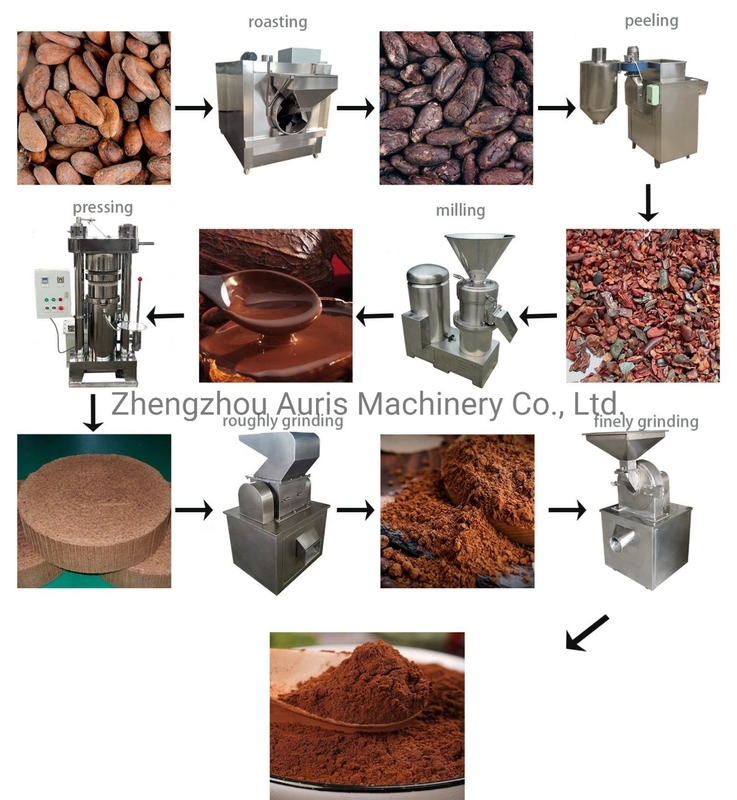

Production flow chart

There are production lines with different output, we customize according to your requirements.

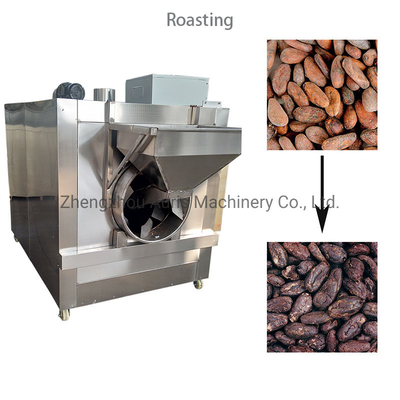

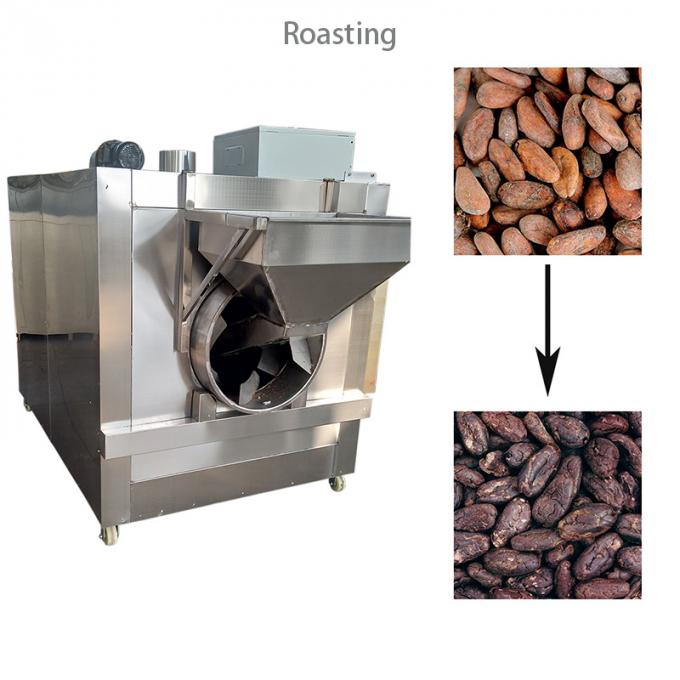

Step 1: cocoa bean roasting

Roller baking machine is used for baking hazelnut, almond, pine nut, peanut and other foods. The advantages are simple operation, compact structure and high efficiency, so it is more suitable for small and medium-sized food processing enterprises.

Roller roasting equipment adopts rotary rolling cage and special high-quality infrared catalytic burner to realize flameless catalytic combustion of natural gas and liquefied petroleum gas. Roller baking machine is equipped with automatic temperature control device. In the process of baking, the object to be baked is continuously pushed by the propulsion device in the cylinder to form an uninterrupted cycle, which makes it heated evenly and effectively ensures the baking quality.

Models with different output can be customized.
The picture on the left shows a single barrel device.

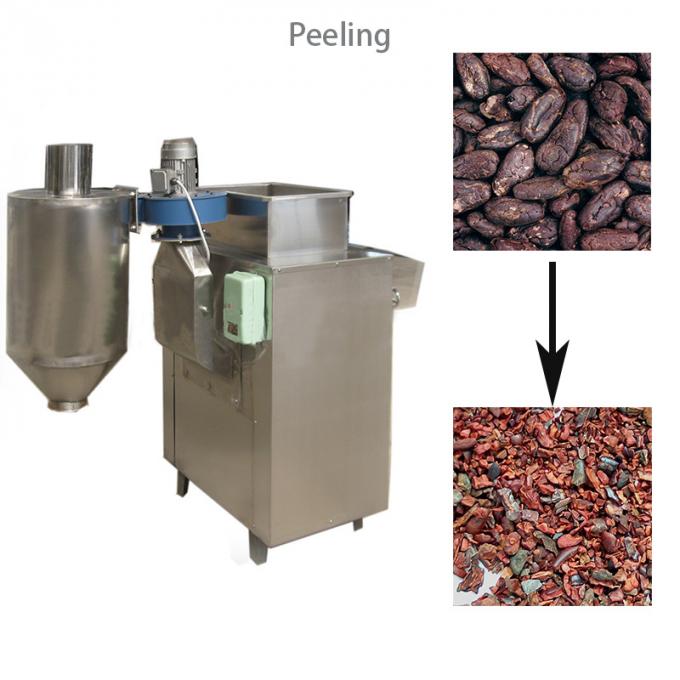

Step 2: cocoa bean peeling

The cocoa beans are put into the feeding hopper, rolled and peeled by the stripping roller, and then dropped to the vibrating screen for screening. The different sizes of peeled cocoa beans are sucked to the outside of the machine by the wind power for storage. The peeled cocoa beans are discharged through the port. All peeled cocoa beans can be separated by adjusting the wind power and the peeling gap.

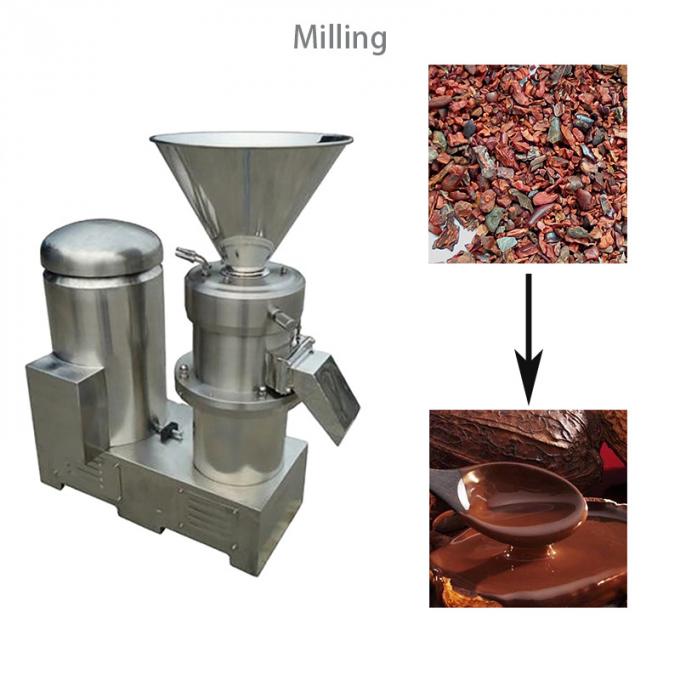

Step 3: cocoa nibs milling

The principle of colloid mill is that the material is effectively crushed, emulsified, homogenized and warmed by the strong shear force, friction force and high-frequency vibration through the high-speed relatively linked fixed teeth and moving teeth, so as to obtain satisfactory fine processing products.

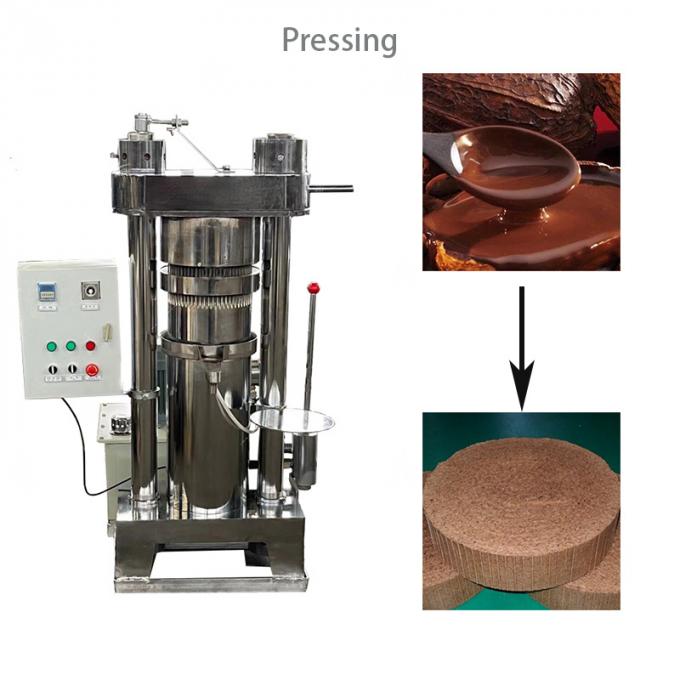

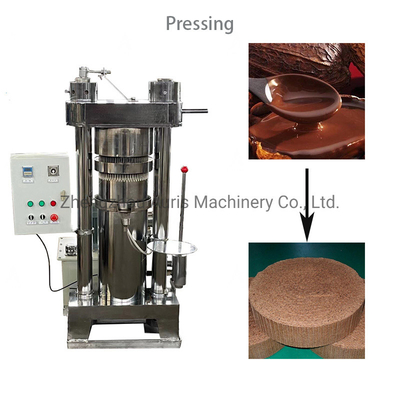

Step 4: cocoa butter pressing

oil pressing machine is a kind of small oil press with simple operation, high oil yield and less replacement of vulnerable parts in mechanical oil press.

oil extractor is a high-quality equipment to replace the manual operation of small mill sesame oil. This hydraulic oil press has a wide range of applications. The structure is stable and has a long operating life. Simple to operate and convenient for daily maintenance.

There are different capaity can be choosen.

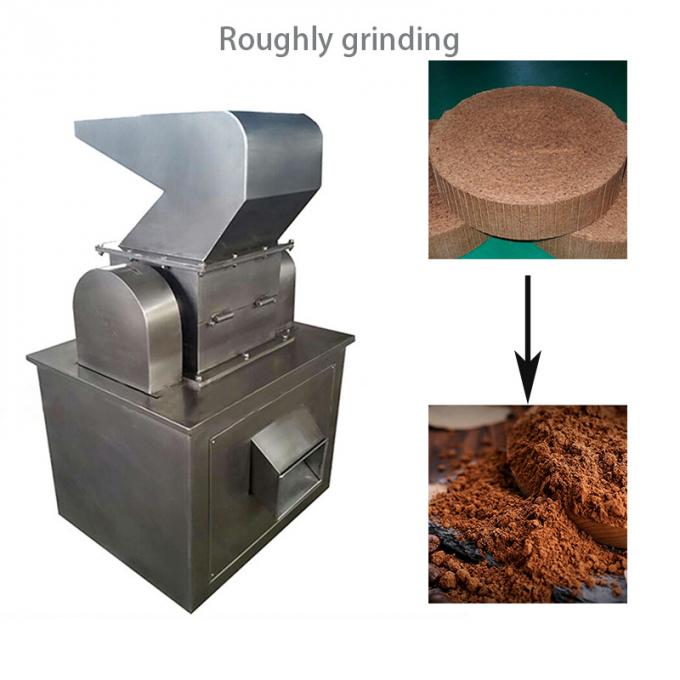

Step 5: cocoa powder roughly grinding

The material enters the crushing chamber from the hopper of the crusher, and the crushing effect is obtained by shearing with a rotating knife and a fixed impact. After the action of the rotating centrifugal force, the material automatically flows to the outlet of the crusher.

This grinder is suitable for the coarse crushing of a variety of chemical, pharmaceutical, food and other hard materials. It has a compact structure, simple operation, low noise, low energy consumption, and good crushing effect.

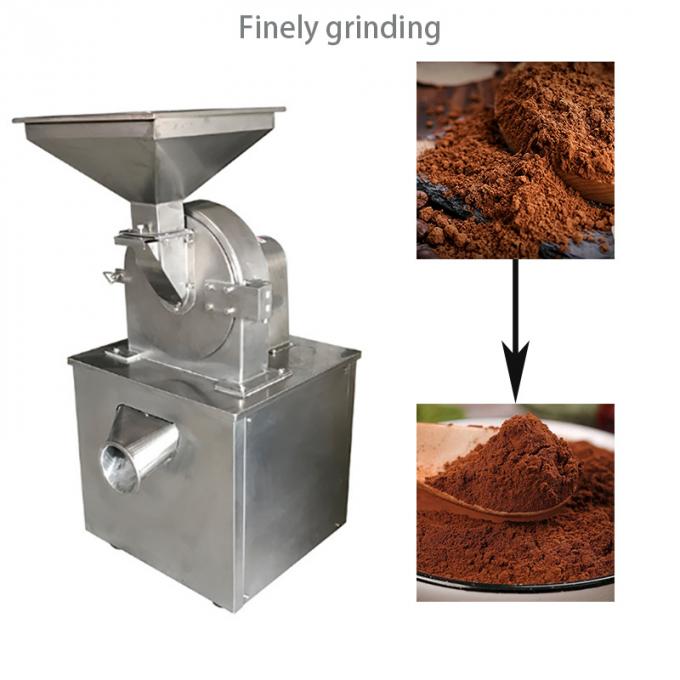

Step 6: cocoa powder finely grinding

This flour milling grinding crushing machine makes use of the relative motion between the active fluted disc and fixed fluted disc to impact, grind and crush the material.

The fineness of crushed material can be adjusted by changing the filter net with different aperture, widely used in pharmaceutical, food, chemical and other industries and is the ideal crushing equipment at present.

Voltage	380v, 50hz, three phase
Power	24kw
Dimension	226011001650mm
Productivity	200kg/h
Weight	500kg

Cocoa Powder Processing Production Line Cocoa Powder Maker Roasting Peeling Milling Crushing Grinding Machine
