Product Details:
|
| Model NO.: | AJML-50 AJML-80 AJML-100 AJML-120 AJML-140 | Model: | Ajml-120 |
|---|---|---|---|
| Capacity: | 200-500 Kg/H(Depends On Raw Material) | Weight: | 295 Kg |
| Package Size: | 850*660*1130 Mm | Material: | 304 Food Grade Stainless Steel |
| Raw Material: | Nuts, Vegetables, Soybean, Vegetables | End Product: | Jam/Nut Jam, Etc |
| Voltage Customized: | Acceptable | Video Inspection: | Acceptable |
| Delivery Time: | 3-10 Working Days | Machine Function: | Grinding/Milling |
| Fineness: | 50-100 Mesh | Hopper Volume: | 8L |
| Specification: | 750*620*1080mm | Origin: | Henan, China |
| Type: | Grinder | Voltage: | 380V |
| Power: | 7.5kw | Customized: | Customized |
| Customization: | Available | Customized Request | ||
| High Light: | 304 Stainless Steel Nut Grinding Machine,Colloid Nut Grinding Machine,Mill peanut butter grinder |
||
Description:
Colloid mill for vegetable and nut grinding is a fine-fluid materials processing machinery. It combines a homogenizer, ball mill, three roll machine, shearing machines, mixers and other machinery of a variety of performance, with excellent ultra grinding, emulsification, homogenization, mixing and other effects. Materials through processing, the particle size of 2 to 50 microns, more than 90% homogeneity, is the ideal equipment for processing of ultrafine particles.
It applies to pharmaceutical, food, chemical and other industries wet ultrafine grinding of materials, can play a variety of sub-humid emulsion material body and crushing, emulsifying, homogenizing and mixing.
The machine is suitable for:
(1) Various nuts: such as Peanuts, Sesame, Almonds, Cocoa, Cashew, Soya beans, Corn, Hazelnut , Pistachios, Macadamia nuts, etc.
(2) Vegetables and fruits: Chili, Garlic, Ginger, Onion, Tomato, Potato, Banana, Apples, etc.

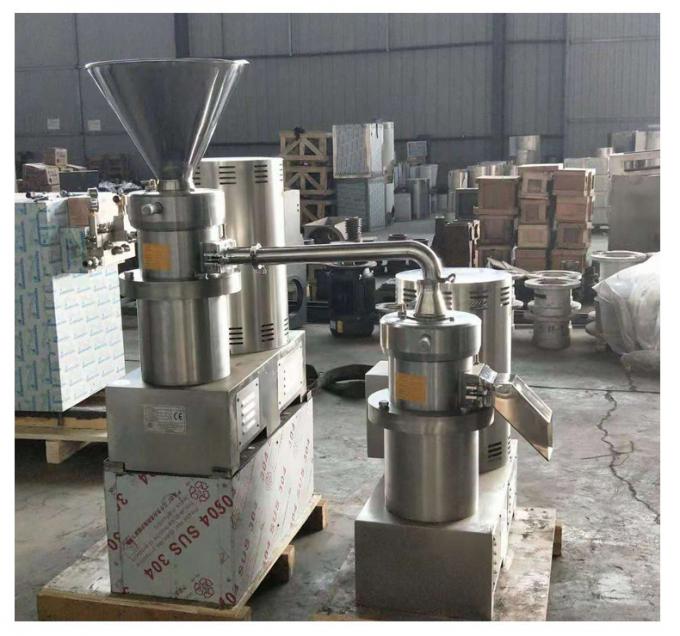

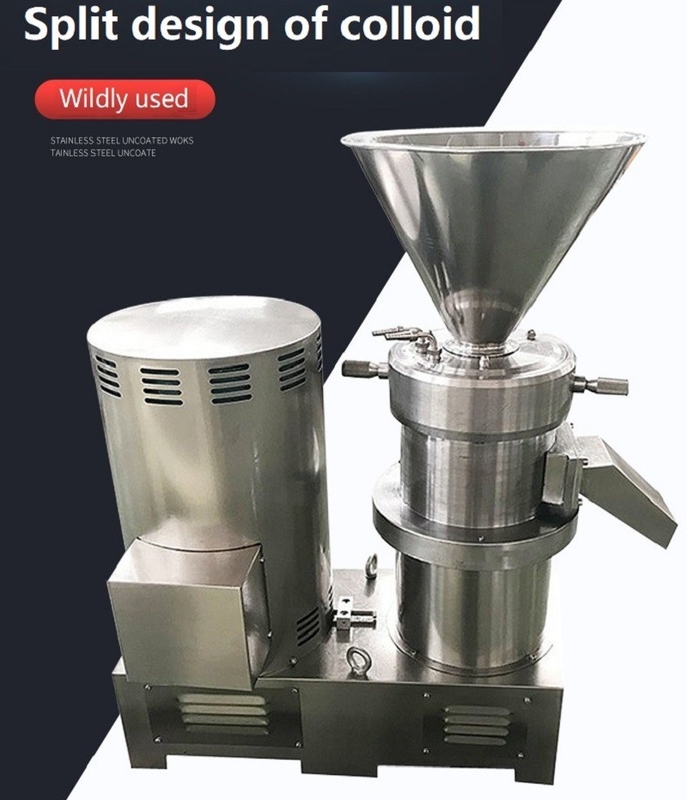

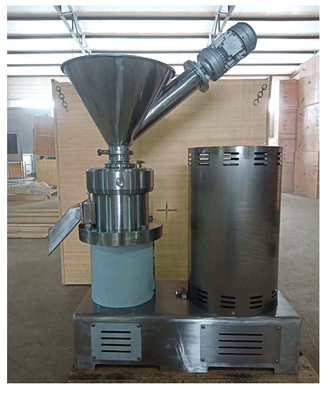

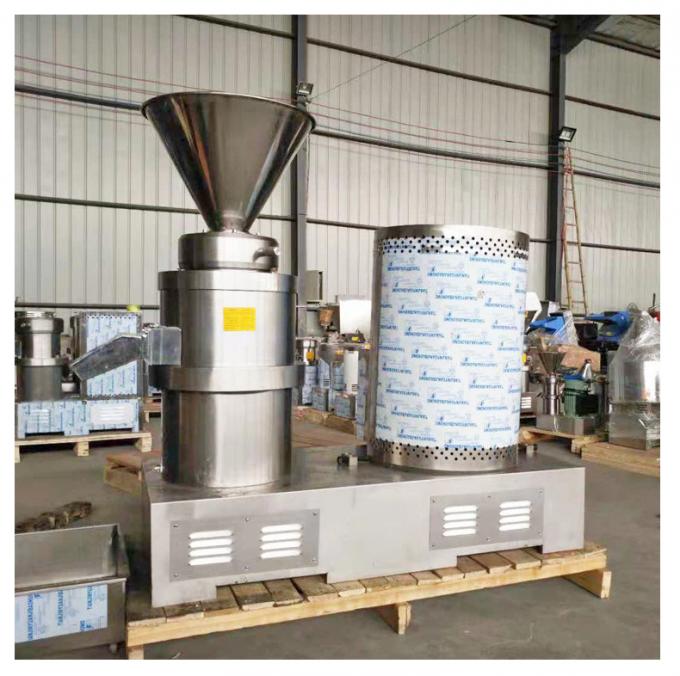

The above picture on left is integrated colloid mill, the above picture on right is seperated colloid mill.

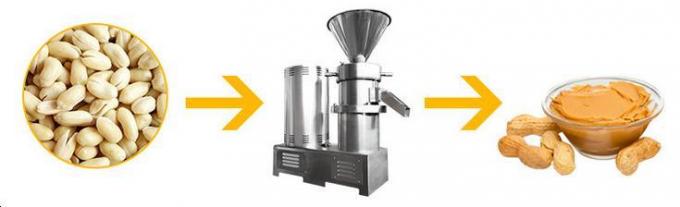

End product of this colloid mill:
|
Model
|
Dimensions
|
weight
|
Voltage
|
Power
|
Production Capacity
|
|
AJML-50
|
420*280*760mm
|
45KG
|
380V
|
1.1kw
|
0.01-0.2t/h
|
|
AJML-80
|
520*400*900mm
|
84KG
|
380V
|
3kw
|
0.3-1
|
|
AJML-100
|
560*420*950mm
|
113KG
|
380V
|
5.5kw
|
0.5-2
|
|
AJML-120
|
560*420*950mm
|
135KG
|
380V
|
7.5kw
|
0.7-3
|
|
AJML-140
|
600*450*1000mm
|
195KG
|
380V
|
1.1kw
|
1-4
|
|
AJMF-80
|
640*550*1030mm
|
210KG
|
380V
|
4kw
|
0.3-1
|
|
AJMF-100
|
750*620*1080mm
|
275KG
|
380V
|
5.5kw
|
0.5-2
|
|
AJMF-120
|
750*620*1080mm
|
295KG
|
380V
|
7.5kw
|
0.7-3
|
|
AJMF-140
|
820*700*1250mm
|
325KG
|
380V
|
11kw
|
1-4
|
|
AJMF-200
|
980*800*1550mm
|
450KG
|
380V
|
15kw
|
2-7
|

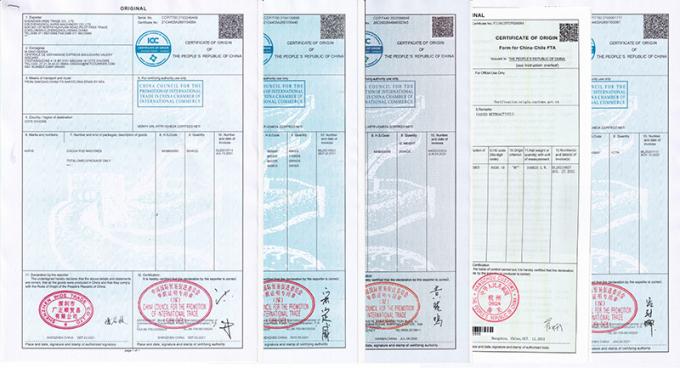

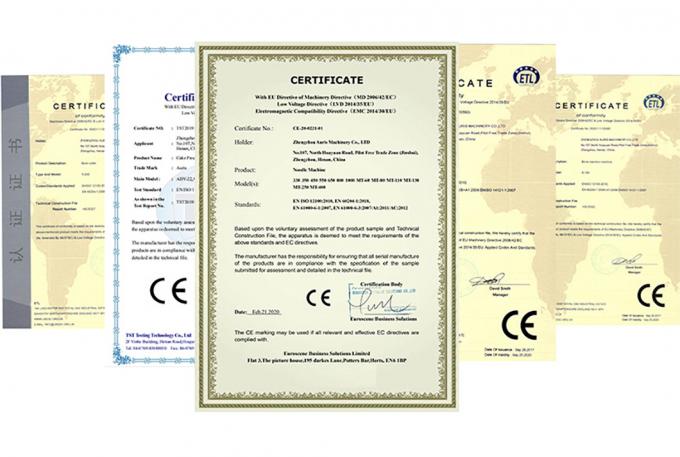

We provide certification and delivery documents to you to help clients do customs clearance.
