Product Details:
|
Model NO.: | AG-100 | Forming Function: | Forming, Filling, Seal |
---|---|---|---|
Packaging: | Bag | Packaging Material: | Film |
Production Speed: | 30-70 Bags/Minute | Maximum Packaging Quantity: | 2500ml |
Power Consumption: | 4kw | Weight: | 1450kg |
MOQ: | 1 Set | Transport Package: | Wooden Case |

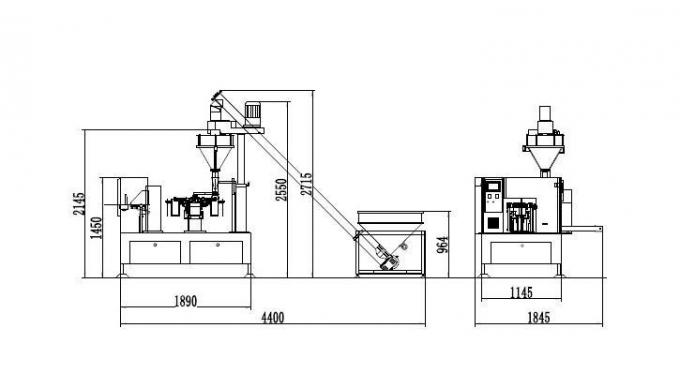

Specification: | 5258x3610x3655mm | Automatic Grade: | Automatic |
Application: | Cleaning, Detergent, Cosmetics, Drinks, Skin Care Products, Dairy Products, Hair Care Products, Tea, Vegetable, Fruit, Fish, Meat, Snack, Rice, Flour, Seasoning | ||
High Light: | 2500ml food filling machine,4kw food filling machine,Detergent food weighing machine |

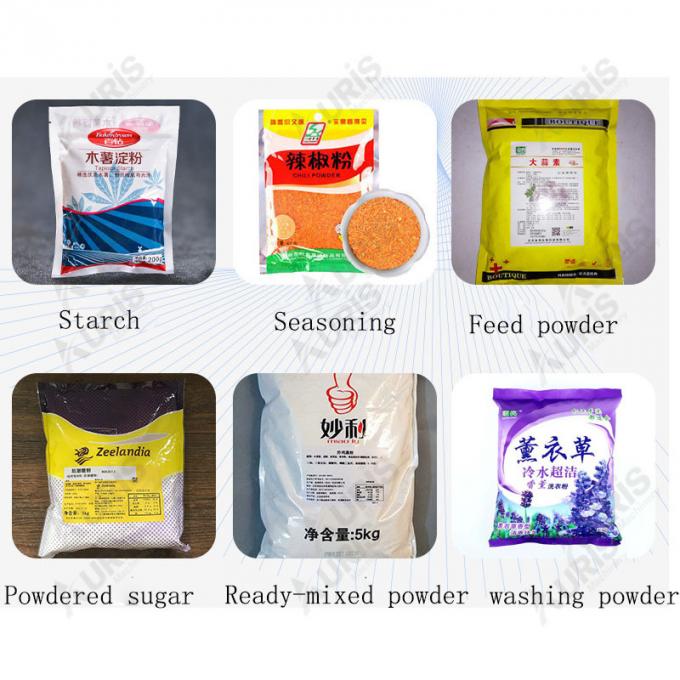

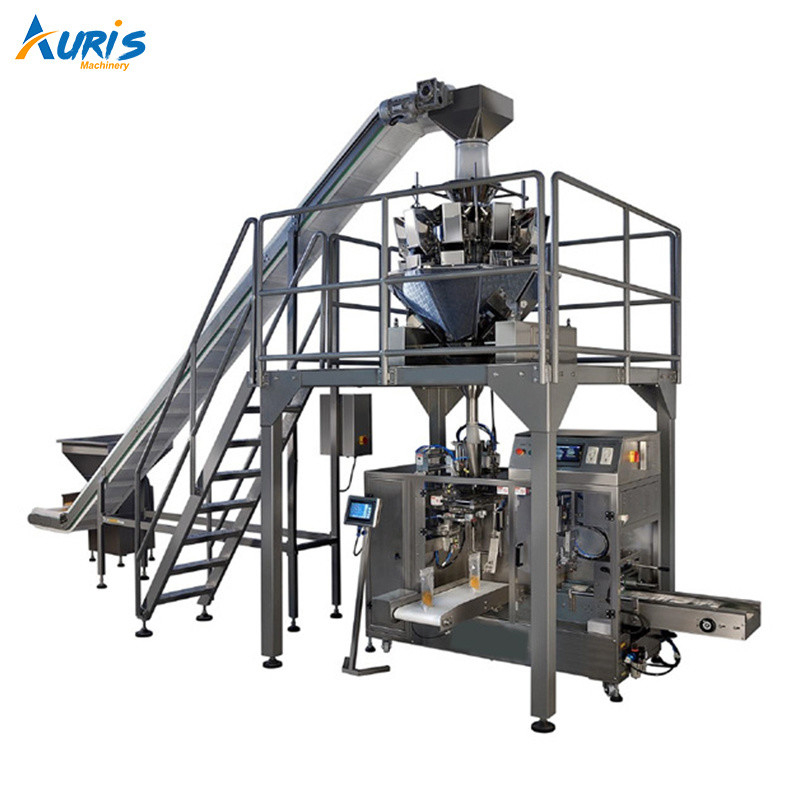

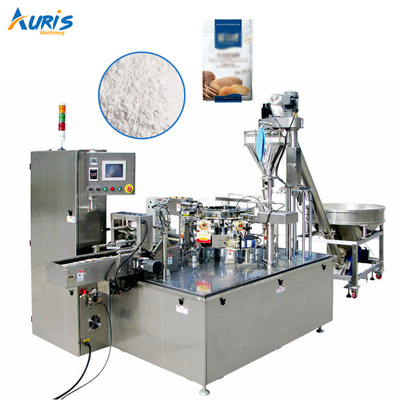

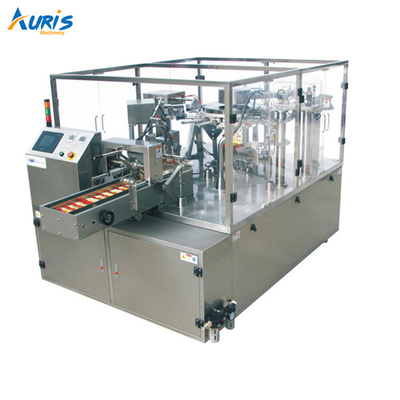

This set of equipment is a combination of screw scale and horizontal bag-feeding packaging machine. It is mainly suitable for the packaging of powder materials such as glucose, milk powder, coffee powder, powder seasonings, additives and so on.
Features of the bag giving type powder packaging machine
1. One machine with multiple functions: the separate feeding method can meet the packaging requirements of a variety of materials (such as powder, liquid, paste, solids)
2. One machine with multiple bags: After simple adjustment, one horizontal machine can meet the packaging needs of various bag types. (Three-side seal, four-side seal, stand-up bag, zipper bag, nozzle bag)
3. One bag of multiple materials: The multi-station blanking method overcomes the shortcomings of the previous packaging machine for filling a single material. The horizontal machine can realize the mixed packaging of multiple materials and meet the correct ratio (such as oily, watery, and multi-material mixing) ).
4. Stable operation: Cam drive, pure mechanical movement, simple structure,
5. Easy to maintain: simple mechanical structure, large space and convenient maintenance.
Packaging material | Composite film, PE, PP, etc. |
Production speed | 30-70 bags/minute |
Packaging accuracy | ±1.5% |
Wide range of packaging bags | 95mm-205mm/90mm-235mm (can be customized according to customer requirements) |
Packing bag height range | 100mm-350mm (can be customized according to customer requirements) |
Maximum packaging quantity | 2500ml |
power consumption | 4Kw |
Voltage | 3phase 380V 3phase 220V 3phase 415V 50-60HZ |
Weight | 1450kg |

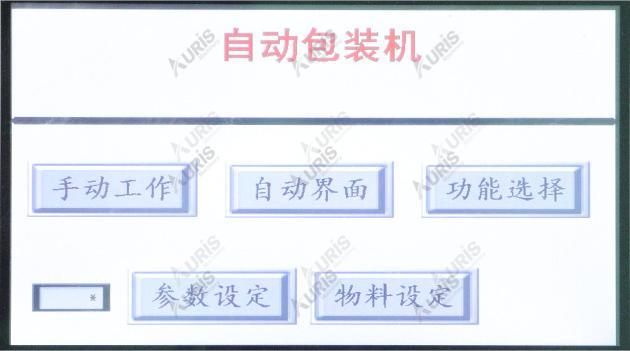

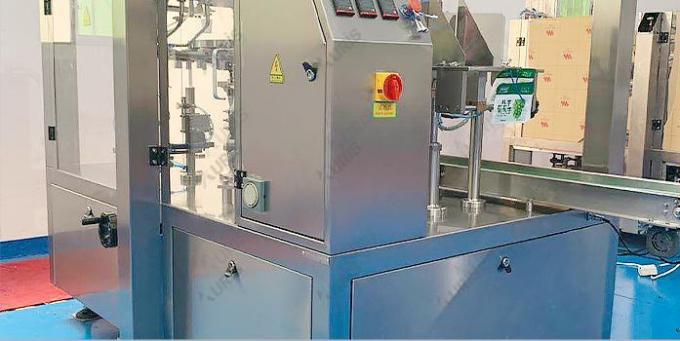

Food grade 304 stainless steel | smart touch panel |

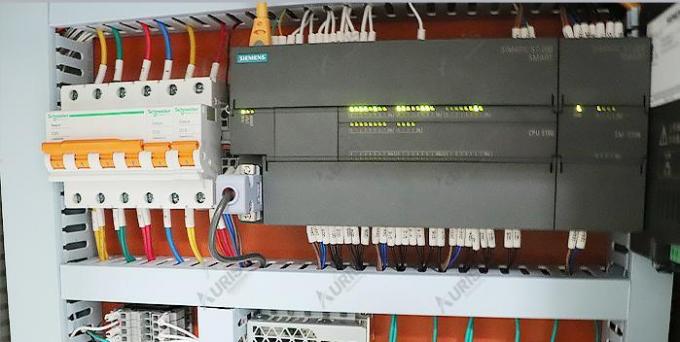

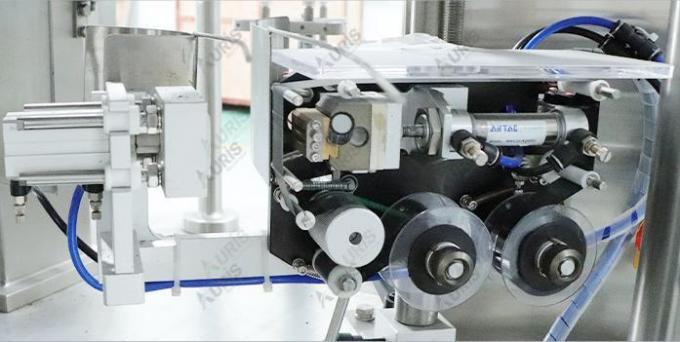

Use smart circuit board to realize programming control main circuit | Thermal printing with tracking color code, using movable type loading and unloading structure, can be coded on packaging film of various materials |
Company profile
Zhengzhou Auris Machinery Co., Ltd is a leading machinery manufacturer, selling and marketing the machines to many countries and regions in the world, such as Malaysia, Nigeria, Indonesia, Pakistan, Iran, Cameroon, Garner, Bulgaria, Russia, Afghanistan and so on.
Found in the year 2009, we are growing and developing bigger and stronger through continuously improving and updating our machines and techniques to statisfy different demeands of all clients, and hope to have more and more cooperations with more clients from all over the world in the near future.
Our main products:
1) food process machinery
2) fruit process machinery
3) chocolate process machinery
4) meat process machinery
5) packing machinery We Auris Machinery offer best price, best quality and short delivery time. Our faith is "Obtaining clients based on good quality, Keep client based on good service".
Please trust we will be your best and strongest support!
