Product Details:
|
| Name: | Chicken Meat Grinder | Dimension: | 960x550x1080mm |
|---|---|---|---|
| Rotation Speed: | 250r/min | Capacity: | 1000-1500kg/h |
| Weight: | 258kg | Power: | 7.5kw |
| Voltage: | 380v/50hz | ||
| Highlight: | Chicken electric meat grinder machine,1500kg/h electric meat grinder machine,Mincer Feed Processing Machines |
||

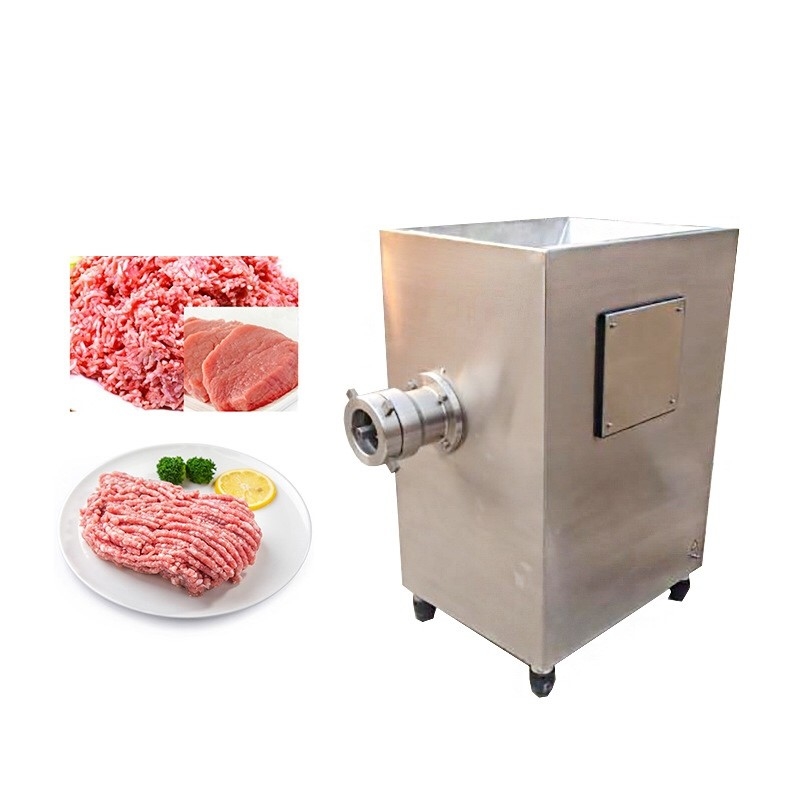

High Output Sausage Make Machine Frozen Meat Grinder Mincer Feed Processing Machines
Description for Frozen Meat Grinder Mincer Feed Processing Machines:
1.The meat mincing machine is a meat processing device with a high universality and a wide range of application in the meat production industry,
serving block meat (frozen or fresh) and food with particles of 3-16 mm (serving 6mm, serving 8mm as a conventional model).
2.Relying on the screw to push the raw meat in the hopper box to the pre-cutting board, through the rotary extrusion of the screw
to make the hole plate and the reamer relatively run to cut the raw meat (frozen meat or fresh meat) into granular shape, ensuring the uniformity of meat fillings.
3.Different combinations of orifice plates can achieve ideal meat fillings.
Advantages for Frozen Meat Grinder Mincer Feed Processing Machines:
1. Features for meat grinder is to rely on spiral push the meat in a hopper to earnestly board.
2. Through the rotation of the screw extrusion orifice and mince, produce relative operation, so as to cut raw meat into particle shape, to ensure the uniformity of meat.
3. Made of stainless steel of the host machine,
4. waterproof electrical buttons.
5. Large feed inlet, smooth feed, high production efficiency.
6. The discharge port design is reasonable .
7. Copper wire winding thickening, small resistance, not easy to appear card.
8. The type gasket is thickened, heat dissipation performance is strong, prevent overheating.
9. Low speed spiral rotary extrusion technology to restore the taste of chopped meat, full release of nutrition.
10. Features for The tray is made of food-grade stainless steel, which is strong and durable, not rusting and healthy.
Application for Frozen Meat Grinder Mincer Feed Processing Machines:
Technical parameters for Frozen Meat Grinder Mincer Feed Processing Machines:
| Model | AJR-100 | AJR-120 | AJR-130 | AJR-160 | AJR-200 |
| Dimension(mm) | 960x550x900mm | 960x550x1080mm | 1315x700x1100mm | 1630x1100x1450mm | 1780x1000x1580mm |
| Power(kw) | 5.5kw | 7.5kw | 11kw | 15kw | 22kw |
| Capacity(kg/h) | 300-500kg/h | 1000-1500kg/h | 1500-2000kg/h | 2000-3000kg/h | 3000-5000kg/h |
| Rotation speed(r/min) | 270r/min | 250r/min | 190r/min | 136r/min | 87r/min |
| Weight(kg) | 182kg | 258kg | 700kg | 1200kg | 1860kg |
Details for Frozen Meat Grinder Mincer Feed Processing Machines: :
1.The Frozen Meat Grinder Mincer Feed Processing Machines made of 304 stainledd steel,which safe and hydienic,durable.
2.The auger outlet: Removable outlet for easy cleaning.
3.Orifice plate:Various specifications of mesh,can twist twist the raw material to 3-30mm .
4.Reamer:The reamer is made of special die steel, which is tough and durable
5.Auger:Cast auger Fast discharge speed.

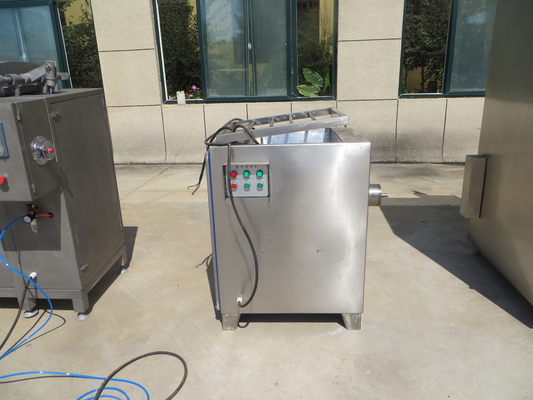

End production for the Frozen Meat Grinder Mincer Feed Processing Machines:
