Product Details:
|
| Features: | Easy To Operate | Name: | Frozen Meat Grinder Mutton And Chicken Frame Bone Meat Grinder |
|---|---|---|---|
| Model: | AJR-160 | Dimension: | 1630x1100x1450mm |
| Weight: | 1200kg | Power: | 15kw |
| Voltage: | 380v/50hz | Capacity: | 2000-3000kg/h |
| Rotation Speed: | 136r/min | ||
| High Light: | Mutton Frozen Meat Grinder,Chicken Frozen Meat Grinder,3000kg/h Bone Meat Grinder |
||

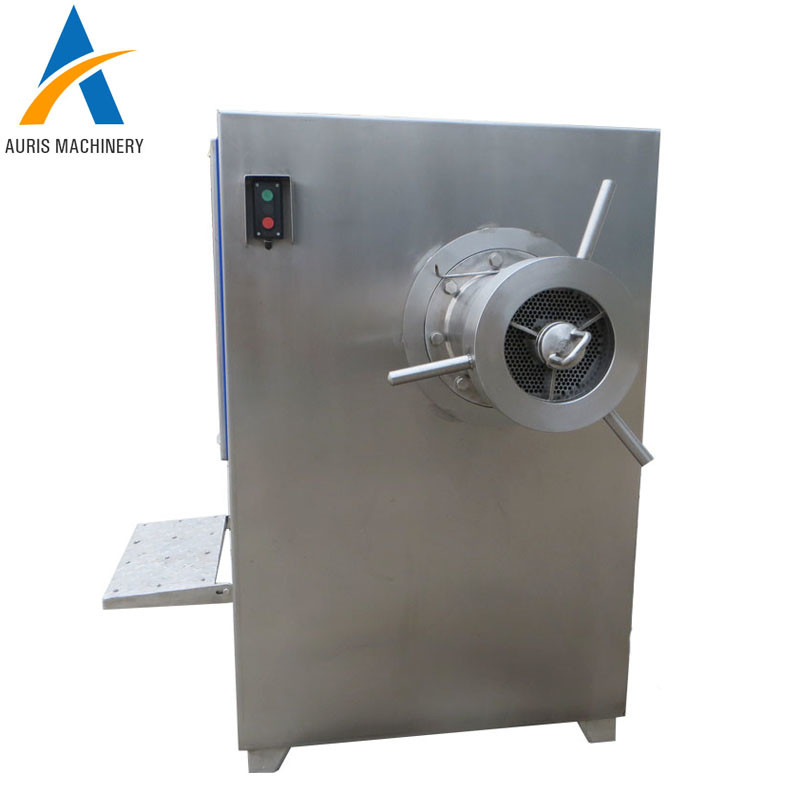

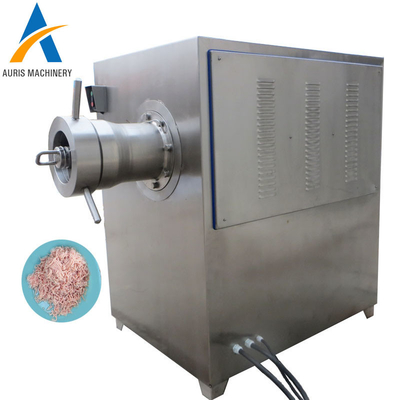

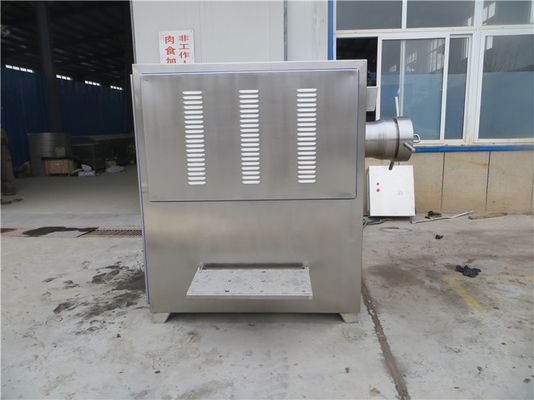

Heave Duty Frozen Meat Grinder Mutton And Chicken Frame Bone Meat Grinder
Description for Frozen Meat Grinder Mutton And Chicken Frame Bone Meat Grinder:
1.The Frozen Meat Grinder Mutton And Chicken Frame Bone Meat Grinder is a meat processing device with a high universality and a wide range of application in the meat production industry,
serving block meat (frozen or fresh) and food with particles of 3-16 mm (serving 6mm, serving 8mm as a conventional model).
2.Relying on the screw to push the raw meat in the hopper box to the pre-cutting board, through the rotary extrusion of the screw
to make the hole plate and the reamer relatively run to cut the raw meat (frozen meat or fresh meat) into granular shape, ensuring the uniformity of meat fillings.
3.Different combinations of orifice plates can achieve ideal meat fillings.
4. Food safety is more up to standard
5. Stainless steel corrosion resistant and easy to clean
6. Twisted Science Locks in Nutrition
Advantages for Frozen Meat Grinder Mutton And Chicken Frame Bone Meat Grinder:
1,Wide usage. Can ground fresh meat, frozen meat and other foods. This machine can cut the frozen meat directly and reduce the loss of nutrition and protein.
2, Security. The parts in contact with the products are made of high quality SUS304 stainless steel and the structure design is easy to remove and clean, meeting the requirements of food hygiene.
3. Short cutting process, low temperature rise, conducive to preservation, extend the shelf life.
4. Positive and negative rotation function makes the possibility of blocking meat grinder zero.
5, A variety of orifice plate combinations are available to meet the processing requirements of different meat products.
Application for Frozen Meat Grinder Mutton And Chicken Frame Bone Meat Grinder:
Technical parameters for Frozen Meat Grinder Mutton And Chicken Frame Bone Meat Grinder:
| Model | AJR-100 | AJR-120 | AJR-130 | AJR-160 | AJR-200 |
| Dimension(mm) | 960x550x900mm | 960x550x1080mm | 1315x700x1100mm | 1630x1100x1450mm | 1780x1000x1580mm |
| Power(kw) | 5.5kw | 7.5kw | 11kw | 15kw | 22kw |
| Capacity(kg/h) | 300-500kg/h | 1000-1500kg/h | 1500-2000kg/h | 2000-3000kg/h | 3000-5000kg/h |
| Rotation speed(r/min) | 270r/min | 250r/min | 190r/min | 136r/min | 87r/min |
| Weight(kg) | 182kg | 258kg | 700kg | 1200kg | 1860kg |
Details for Frozen Meat Grinder Mutton And Chicken Frame Bone Meat Grinder:
1.The Frozen Meat Grinder Mutton And Chicken Frame Bone Meat Grinder made of 304 stainledd steel,which safe and hydienic,durable.
2.The auger outlet: Removable outlet for easy cleaning.
3.Orifice plate:Various specifications of mesh,can twist twist the raw material to 3-30mm .
4.Reamer:The reamer is made of special die steel, which is tough and durable
5.Auger:Cast auger Fast discharge speed.
End production for the Frozen Meat Grinder Mutton And Chicken Frame Bone Meat Grinder:
